Abstract
UV LED label printing on heat-sensitive films requires simultaneous control of cure performance and web temperature. A fully cured ink film is not sufficient if the label construction develops shrinkage, curl, registration movement, or rewind defects. In narrow-web flexographic and UV offset label production, thermal behaviour changes with print coverage, ink-film thickness, lamp location, web speed, and the structure of the pressure-sensitive laminate. This article presents a production-focused method based on thermal profiling of the printed repeat. It explains how OEMs, converters, and engineers can establish cure settings that protect sensitive films while maintaining rub resistance, adhesion, and converting performance.
Introduction

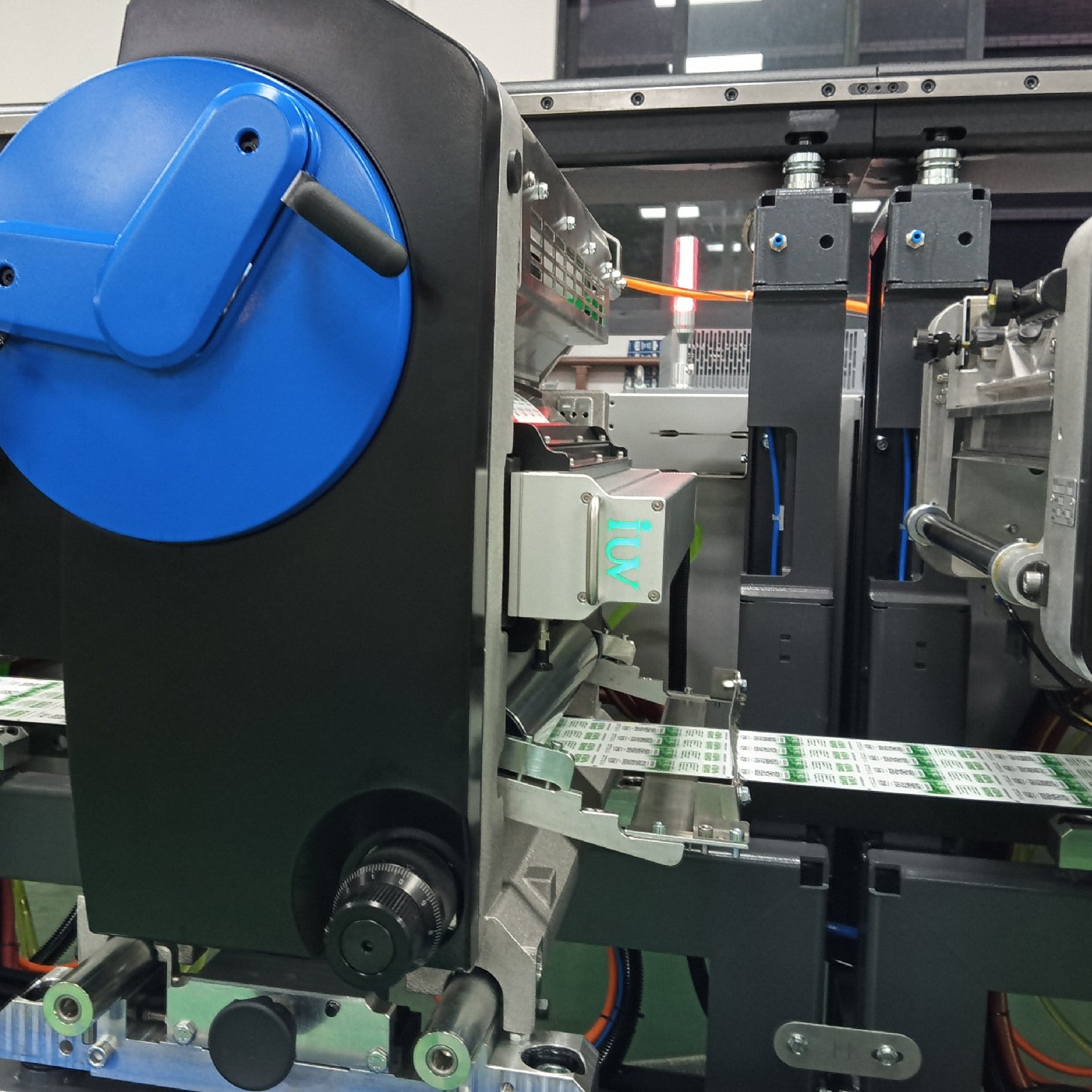

UV LED label printing on heat-sensitive films is often used for pressure-sensitive labels made from BOPP, polyethylene, polypropylene, PET, and other thin film facestocks. These materials can run successfully under LED-UV lamps, but the process requires more than selecting a low-heat curing source.
A printed film web does not receive the same thermal load across every repeat. Dense black areas, opaque white panels, flood varnishes, metallic graphics, and high-build coatings absorb energy differently from unprinted areas. The temperature profile can therefore vary in both the machine direction and cross direction. A single temperature reading beside the lamp may miss the areas most likely to distort.
The useful engineering objective is to create a stable cure envelope. Within that envelope, every ink and coating receives sufficient LED energy, while the label construction remains dimensionally stable through printing, rewinding, die cutting, and dispensing. Achieving this result requires a thermal profile that is linked to the actual artwork and press configuration.
Heat Is Created by the Process, Not Only by the Lamp
LED curing heads produce a narrow wavelength band, often centred near 365 nm, 385 nm, 395 nm, or 405 nm. Their reduced infrared emission helps limit direct heat transfer to the web. However, LED energy is still absorbed by the ink, coating, substrate, and surrounding press components. Absorbed optical energy becomes heat.
The printed web also collects heat from repeated cure stages. Interstation pinning, final cure, hot idler rolls, enclosed press guards, and warm air around the curing zone can all contribute. The total effect may be significant on a thin unsupported film, even when each individual lamp operates within its expected range.
Pressure-sensitive label stock adds another variable. The facestock, adhesive, release coating, and liner may have different thermal expansion and relaxation behaviour. The facestock may appear flat at the press exit, while the adhesive layer stores stress that later causes curl or poor dispensing. Thermal control must therefore consider the finished laminate rather than the facestock alone.
UV LED Label Printing on Heat-Sensitive Films Needs a Thermal Profile
A thermal profile identifies where, when, and under which print conditions the web gains heat. It should be created with representative production artwork, not with an unprinted sample. The chosen job should include high-coverage areas, heavy spot colours, opaque white, varnish, and any ink combination that represents normal production risk.
Measurements should be taken after key cure stages, after cooling zones, before rewinding, and after a short stabilization period. This reveals whether the web cools between stations or accumulates heat through the press. It also identifies whether a final cure unit creates a localized thermal peak.
Cross-web measurements are equally important. Lamp output, cooling-roll contact, and print coverage may vary from the operator side to the drive side. Edge curl or one-sided registration movement often indicates an uneven thermal condition rather than a general material problem.
The recorded profile should include press speed, web tension, lamp output, lamp-to-web distance, cooling settings, material code, ink system, and job coverage. This information creates a usable production reference. It also makes later troubleshooting faster because operators can compare a problem run with an approved condition.
Select Wavelength Through Ink Chemistry
Wavelength selection should begin with the ink and coating chemistry. The photoinitiator package must respond effectively to the LED emission band. If the match is poor, the press may need higher exposure to obtain acceptable surface cure. That extra exposure can increase web temperature without solving an underlying through-cure problem.
An ink designed for a broad-spectrum conventional UV source may not react efficiently under a narrow-band LED lamp. It may show poor rub resistance, a tacky surface, weak adhesion, or insufficient cure beneath a pigmented surface. The issue is especially relevant for opaque white, dense black, high-strength spot colours, metallic inks, and heavily pigmented varnishes.
The ink supplier should confirm compatibility with the intended LED wavelength and expected irradiation range. Validation should cover each major ink type, not only process colours. A formulation that works for cyan or magenta may require different cure conditions for opaque white or a textured coating.
Correct wavelength matching reduces the need to compensate with excessive power. This is one of the most effective ways to protect heat-sensitive films without lowering finished-label performance.
Irradiance and Dose Must Be Balanced at Production Speed
Irradiance is the instantaneous optical power delivered to the web. It is normally expressed in watts per square centimetre. Energy dose is the total delivered energy during exposure and is normally expressed in joules per square centimetre.
For a moving web, dose is influenced by irradiance, effective exposure length, and press speed. As speed increases, the time under the lamp decreases. The lamp recipe must therefore be validated at commercial production speed, not only during a slow-speed setup.
A high peak irradiance value does not automatically produce a lower-heat process. If the LED head is operated beyond the ink’s actual cure requirement, the additional energy can raise web temperature. Conversely, insufficient irradiance may cause poor cure at high speed and lead operators to reduce speed unnecessarily.
The correct setting is the lowest stable combination of irradiance and dose that achieves the required cure properties under normal production conditions. Measurements should be taken at the web plane with a meter suitable for the LED wavelength. A meter designed for broad-spectrum UV may not provide reliable readings for narrow-band LED systems.
Anilox Volume and Ink Film Thickness Change the Heat Load
In flexographic label printing, anilox volume strongly affects ink-film thickness. A thicker ink film may improve opacity or colour density, but it can require more energy for through-cure. It can also absorb more LED energy and produce a higher local thermal load on the film.
This relationship is important for artwork with large white panels, solid brand colours, or reverse-print applications. A heavy ink deposit beneath subsequent colours can introduce heat before the final cure stage. If several stations use high-volume anilox rolls, the cumulative effect can become more important than the output of any single lamp.
Anilox specification should therefore be linked to both graphic requirements and curing capability. An unnecessarily high cell volume may force a high-energy cure recipe. Stable ink transfer often reduces the required exposure more effectively than increasing lamp output.
Anilox cleanliness, chamber pressure, doctor blade condition, viscosity control, and plate design should be checked when cure performance changes. A plugged or worn anilox can create uneven film thickness across the web. This can appear as inconsistent cure or uneven thermal distortion.
Pinning and Final Cure Should Have Different Roles
Interstation pinning can help control dot gain, prevent ink movement, and support clean overprinting. It is useful when printing fine type, process graphics, or multiple wet-on-wet colours. However, pinning should be set for its specific function rather than treated as full cure.
Too much energy between print stations can add unnecessary heat. It may also affect intercoat adhesion when the following ink or varnish requires a reactive surface. The cure sequence should distinguish between controlled pinning and final cure.
A practical label press may use lower interstation exposure for selected colours, followed by a stronger final cure after the final ink, coating, or varnish unit. The correct sequence depends on coverage, colour order, substrate type, and end-use requirements. It should be confirmed using both cure tests and thermal measurements.
This approach is also useful for UV offset and hybrid label presses. Dense solids may need a different final-cure strategy from fine text or halftone work. The press should avoid applying the same lamp output to every stage simply because the printed web passes through the same curing technology.
Web Handling Can Amplify Thermal Distortion
Temperature and tension interact closely on thin films. As the web warms, its modulus and dimensional response can change. A tension level that is stable on a cool film may create registration movement, neck-in, or wrinkle formation when the web becomes warmer.
The effect may be most visible after a cure station, where the web enters a different tension zone or turns around an idler roll. Operators may interpret the resulting registration shift as a plate, sleeve, or servo issue. In some cases, the root cause is thermal movement in the web.
Press settings should be reviewed during thermal validation. This includes unwind brake response, dancer settings, nip pressure, idler-roll condition, chill-roll contact, and rewind tension. The same material should be evaluated at low and high coverage because the artwork can change the web’s thermal response.
Rewind quality provides useful evidence. Telescoping, blocking, trapped heat, edge curl, and later roll deformation can indicate that the web entered the rewind section above a stable temperature range. The web should have adequate time and cooling capacity to release heat before it is wound tightly.
Cooling Zones Need a Defined Purpose
Cooling should be placed where it can remove heat from the moving web without creating handling problems. A chill roll can be effective when it has sufficient wrap angle, thermal capacity, and clean surface contact. Its value depends on its position relative to the cure head and the web path.
Cooling immediately after a high-energy final cure can reduce the temperature entering the rewind section. Cooling between print stations may support dimensional stability, but it must not interfere with ink transfer or cause condensation. The required approach depends on the press design and material construction.
Airflow also needs control. Air-cooled LED systems require clear airflow paths to protect the lamp modules. Uncontrolled airflow near lightweight films can disturb web tracking or introduce dust. The lamp-cooling circuit and the web-handling environment should be treated as separate design considerations.
Water-cooled LED heads require stable coolant flow and active alarm monitoring. Reduced coolant performance can lower output or create inconsistent exposure. A press should not rely only on a displayed power value. It should confirm actual energy delivery at the web.
Low-Migration Work Requires Stable Thermal and Cure Conditions
For low-migration label production, a visually dry surface is not an adequate cure criterion. The approved process must include compatible inks, coatings, adhesives, substrates, cleaning procedures, and validated LED settings. Any material or recipe change can affect the established result.
Heat management remains relevant because distorted film or altered adhesive behaviour can compromise package performance even when surface cure appears acceptable. Operators should follow documented lamp recipes and avoid unapproved adjustments to speed, output, or ink laydown.
Quality checks should reflect the application. They may include adhesion, rub resistance, scratch resistance, blocking resistance, odour evaluation where relevant, and performance after converting. Samples should be assessed after the label construction has stabilized, not only at the press exit.
Troubleshoot by Separating Cure Defects from Heat Defects
Tacky ink, poor rub resistance, and weak adhesion usually indicate a cure issue. Begin with wavelength compatibility, lamp output at the web plane, lamp-window cleanliness, web speed, working distance, ink batch, and ink-film thickness. Increasing output should be the final step, not the first response.
Curl, shrinkage, registration drift, web wander, and rewind deformation point toward a thermal or web-handling issue. Check the temperature profile after each cure stage, cross-web temperature variation, cooling-roll performance, web tension, and coverage distribution in the printed repeat.
If a defect occurs only under dense graphics, compare anilox volume and ink-film thickness with lighter areas. If it occurs at one web edge, inspect lamp alignment, optical uniformity, cooling contact, and local web path. A structured approach prevents the process from trading one defect for another.
Maintenance Keeps the Process Within Its Validated Range
Lamp windows can collect ink mist, dust, paper lint, varnish splash, and adhesive debris. This reduces optical transmission and can create uneven output across the web. A contaminated window may cause undercure in one lane while the operator raises overall power, adding heat to the rest of the web.
Routine maintenance should include inspection and approved cleaning of lamp windows, output measurement, cooling-system checks, electrical connection inspection, and safety-interlock verification. Air filters, fans, coolant flow, hoses, and sensors also require scheduled attention.
Performance data should be recorded by lamp head and press. Trending output and temperature results makes it easier to identify gradual changes before they cause rejected rolls or difficult converting defects.
Conclusion
Managing web temperature in UV LED label printing depends on understanding the thermal profile of the printed repeat. Heat-sensitive films respond to the combined effects of wavelength, energy dose, ink-film thickness, coverage, cure sequence, cooling, and web tension.
Reliable production comes from matching the ink chemistry to the LED source, separating pinning from final cure, controlling anilox-driven ink laydown, and measuring temperature where the web actually absorbs heat. When these controls are documented by job, converters can maintain cure performance while protecting thin film label constructions from distortion.
