Mercury UV Curing System

From printing and coating to adhesion and bonding applications,
IUV’s mercury UV curing system offers a trusted solution for enhancing productivity.

Specification

Technical Specifications

Product Name:	IUV Mercury UV Curing System
UV Energy:	160~220W/cm
Lighting Length:	20-200cm
Optimal Distance:	10-20mm
Cooling Method:	Air Cooling
Lifespan:	>1,000 Hours
Wide Applications:	Flexography Printing, Digital Printing, Intermittent Offset Printing, Letterpress Printing, Sheet-fed Offset Printing, etc.

About Mercury UV Curing Systems

IUV mercury UV curing systems deliver outstanding performance across a wide range of applications, including printing, coating, bonding, and processing of various materials.

Printing Applications:

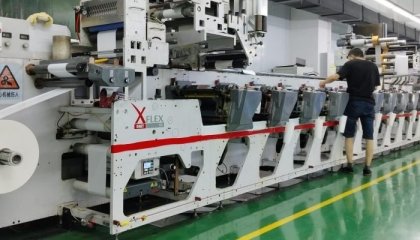

In printing, IUV’s mercury UV curing systems provide rapid and efficient curing of inks, ensuring vibrant and long-lasting print results. They are compatible with flexographic, lithographic, and screen printing inks.

Coating Applications:
For coating applications, IUV’s mercury UV curing systems ensure optimal curing of varnishes, protective finishes, and decorative layers, delivering consistent surface quality and durability.

Adhesive Applications:
In adhesive applications, IUV’s mercury UV curing systems are widely used in industries such as electronics, medical devices, and packaging. They enable reliable bonding of materials including glass, metal, plastics, and composites.

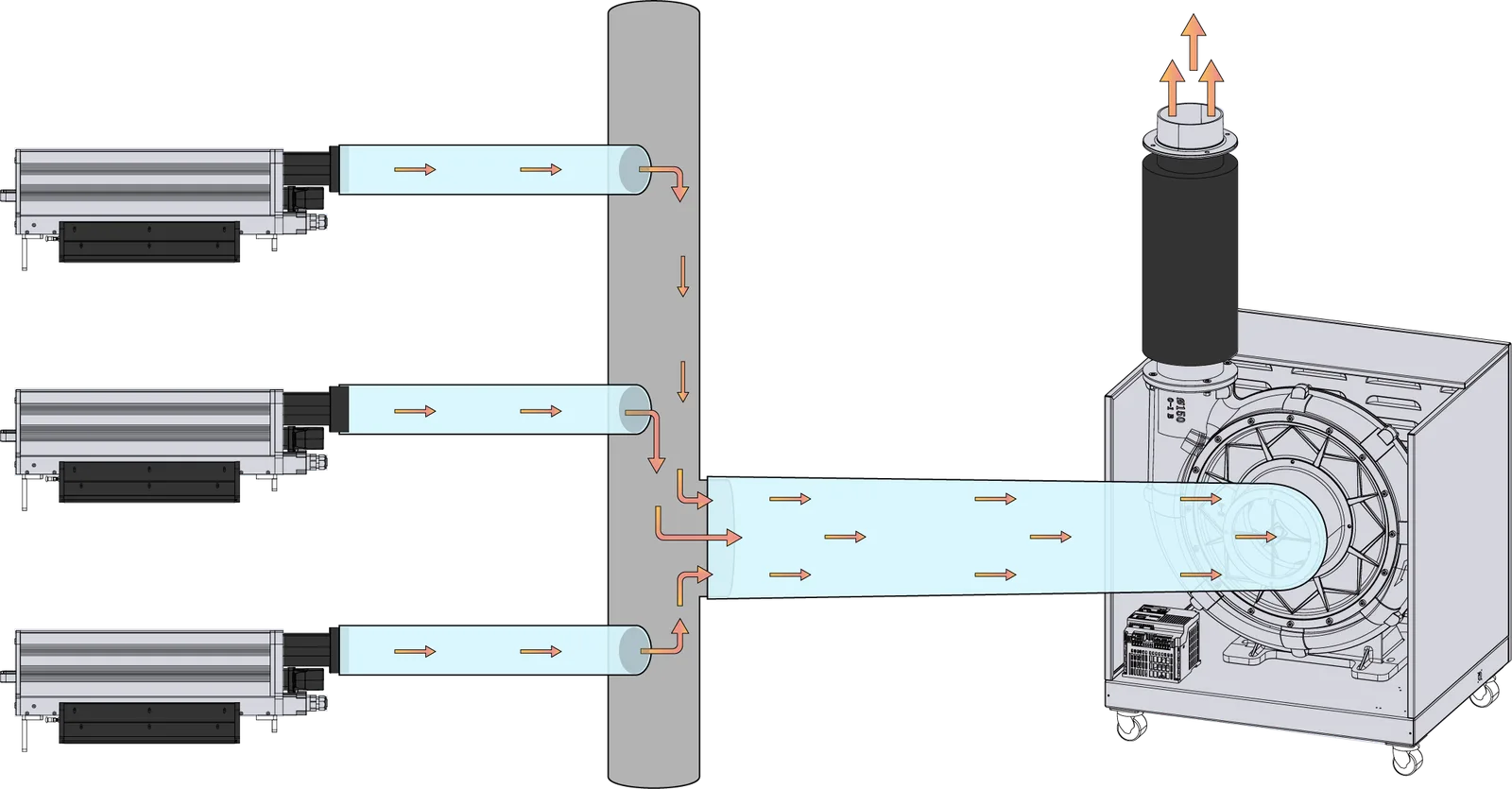

Why Does Mercury UV Require Air Cooling?

Temperature Regulation for Optimal Performance Unlike LED UV systems, mercury UV lamps require a specific temperature range to operate efficiently. Air cooling helps maintain the ideal operating temperature by effectively dissipating heat, ensuring consistent and reliable performance over time.

Cost-Effective Solution
Air-cooling systems are generally more cost-effective than water-cooling alternatives. With lower initial investment and no need for additional water-cooling infrastructure, they provide a practical and budget-friendly solution for many businesses.

Installation Flexibility

Air-cooling systems are highly adaptable and can be easily integrated into existing UV curing setups. They offer greater flexibility in installation and placement, allowing businesses to optimize their systems without extensive modifications.

IUV Mercury UV Curing System Features

Optimized Heat Dissipation Design

IUV mercury UV lamps feature an advanced airflow design that efficiently dissipates heat from the lamp housing. This ensures optimal operating conditions and delivers consistent, well-balanced curing performance.

Smoothly Controlled Shutter

IUV's mercury lamps are equipped with an electrically controlled shutter that operates with high torque, delivering smooth, gentle movement with minimal noise.
This tech is able to keep stable and reliable operation, reducing the frequency of part replacements and enhancing the system's longevity.

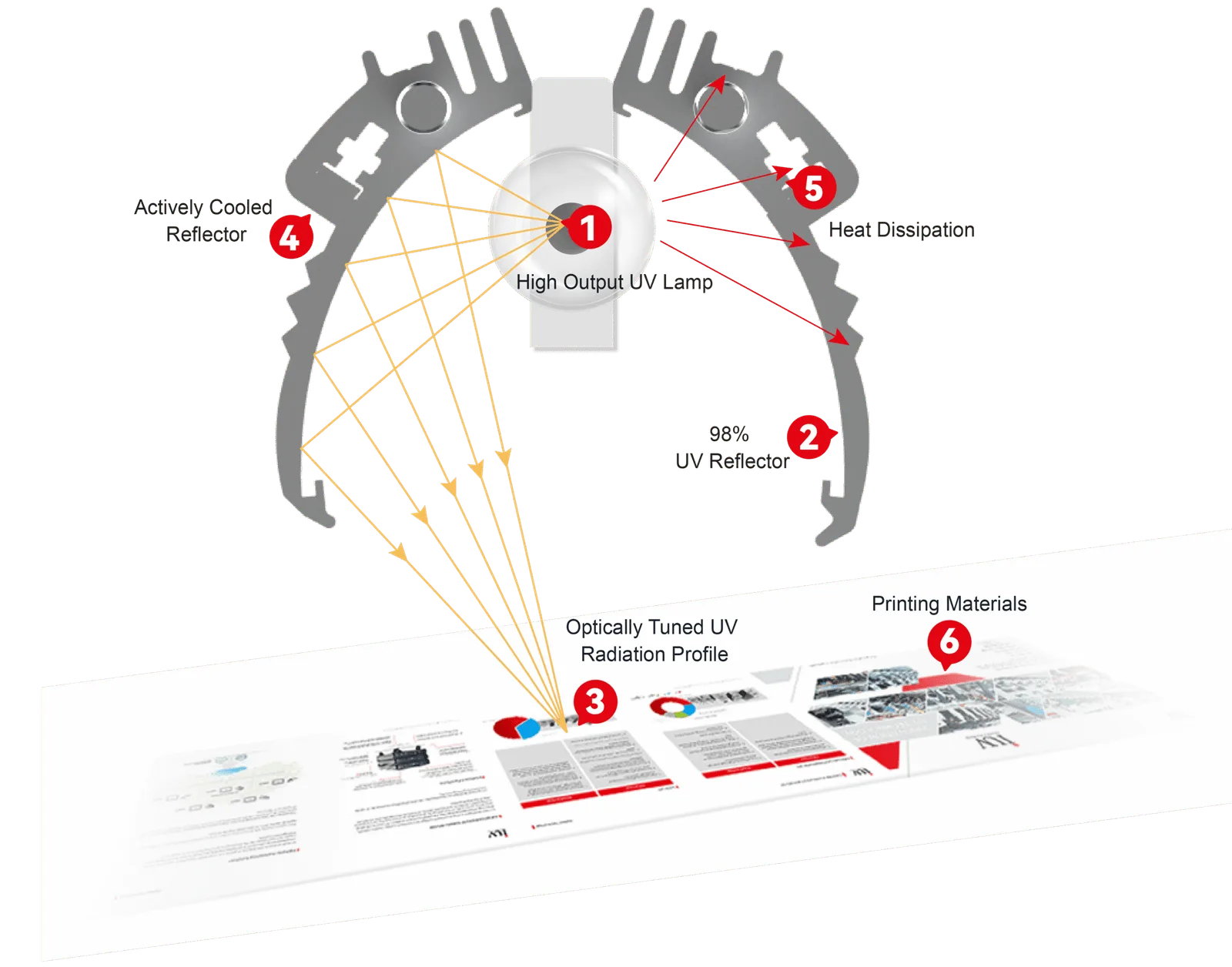

High-Efficiency UV Reflector

IUV uses mirror-finish aluminum reflectors that can reflect up to 98% of UV light, maximizing curing efficiency.
Compared to coated quartz glass reflectors, mirror aluminum delivers superior curing performance and lower replacement costs, providing a more cost-effective solution while maintaining high energy efficiency.

Quartz Glass Protection

IUV mercury UV lamps are equipped with a flat quartz glass layer that isolates the lamp from printing substrates and materials.
This protective layer effectively shields the lamp from contamination caused by inks and volatile solvents, ensuring a longer service life and maintaining consistent performance over time.

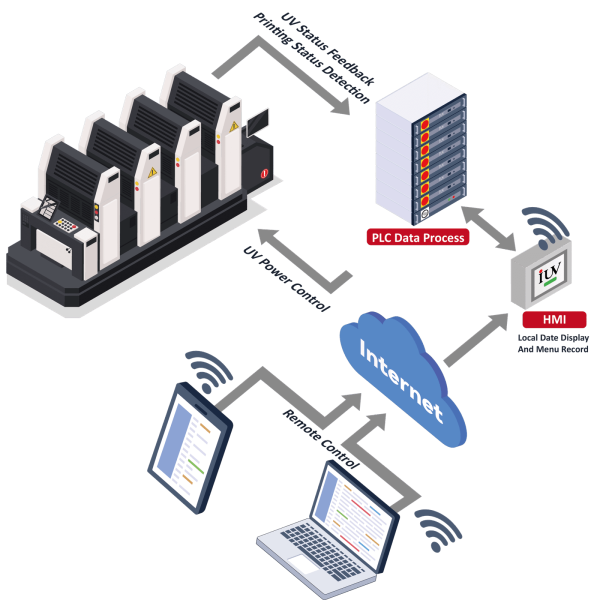

Cloud-local Data Interaction

To ensure seamless operation of IUV equipment worldwide, IUV has developed a comprehensive remote and local data management system. This system enables efficient troubleshooting, remote OTA software upgrades, and supports future digitalization needs for global customers.

IUV systems allow equipment around the world to connect to cloud servers via network cables, Wi-Fi, and other internet access methods. Through PCs or mobile devices, users can easily access real-time data, perform fault diagnosis, and manage software updates from anywhere.

This advanced system delivers two key benefits:
First, it enables fast identification and resolution of system issues, minimizing downtime and maintaining production efficiency.
Second, it provides real-time data to support digital factory management and optimization, helping businesses improve operations and make data-driven decisions.
