Specification
IUV
Modular Power Control System

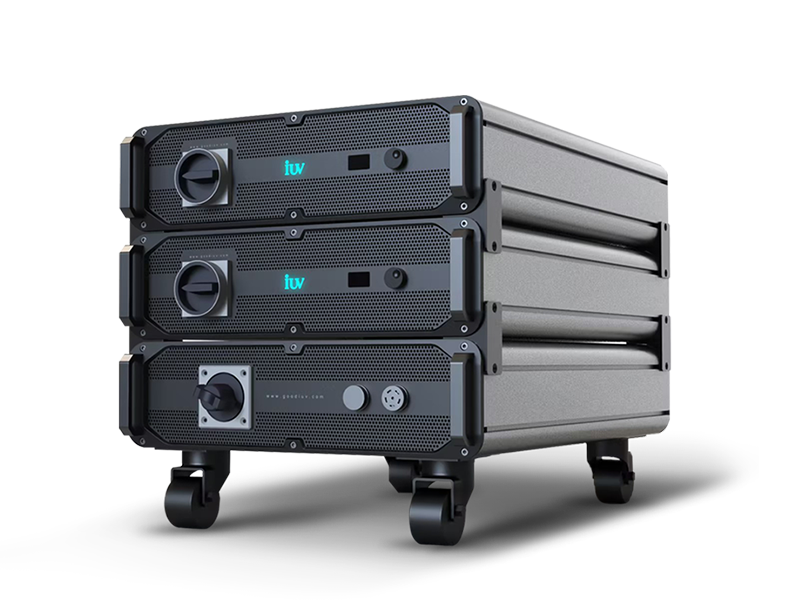

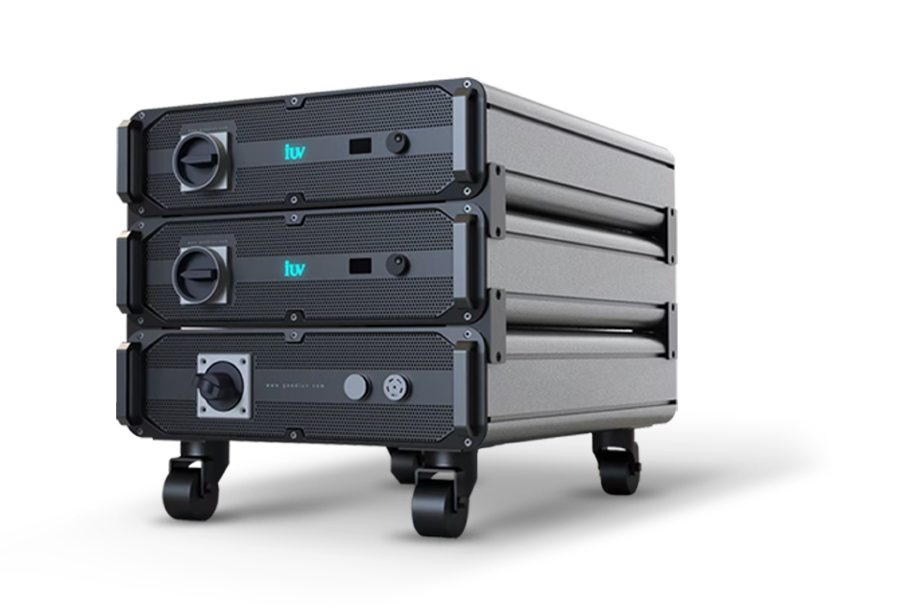

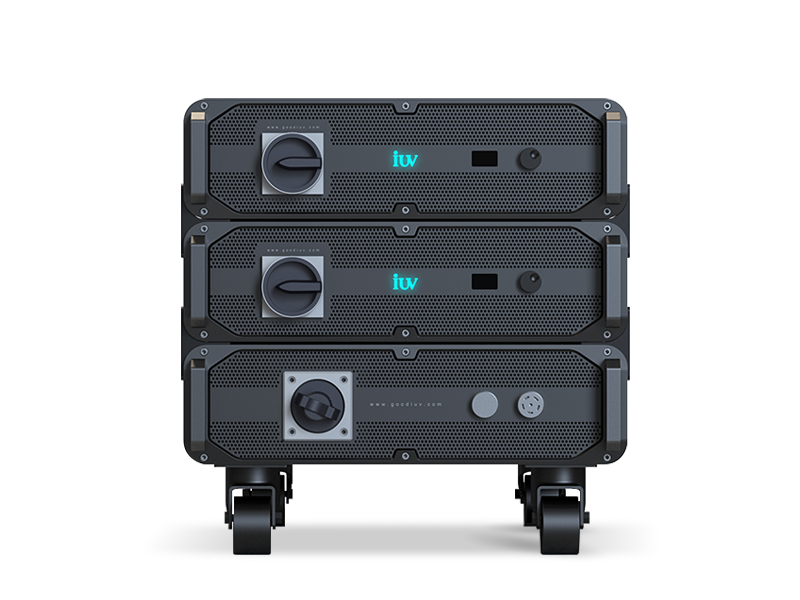

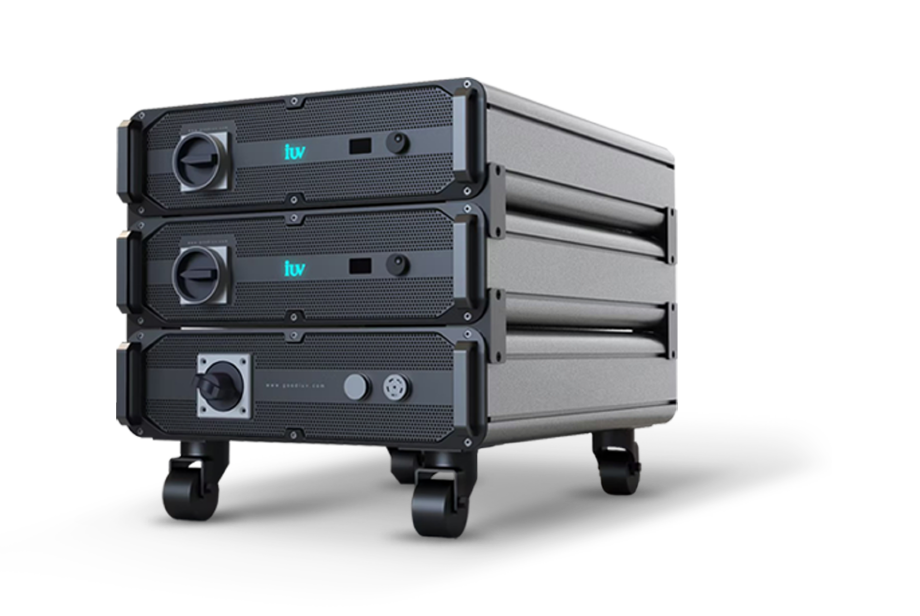

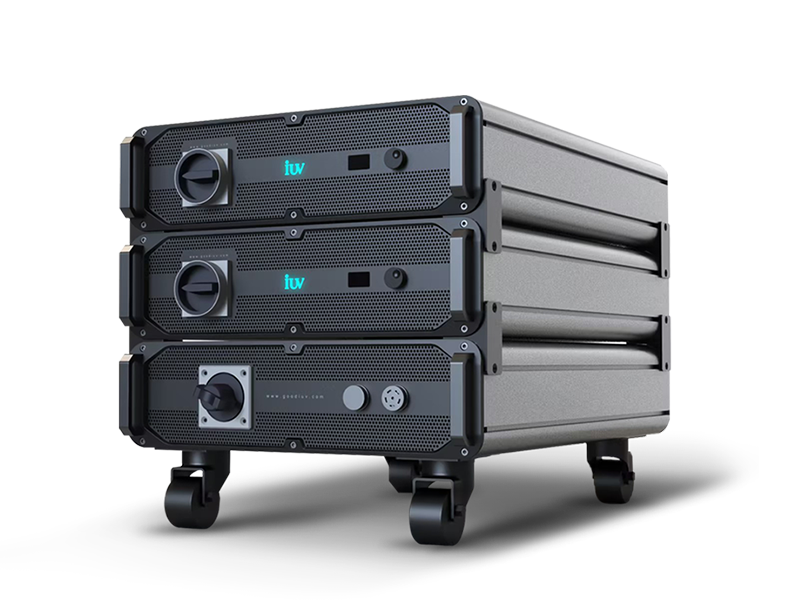

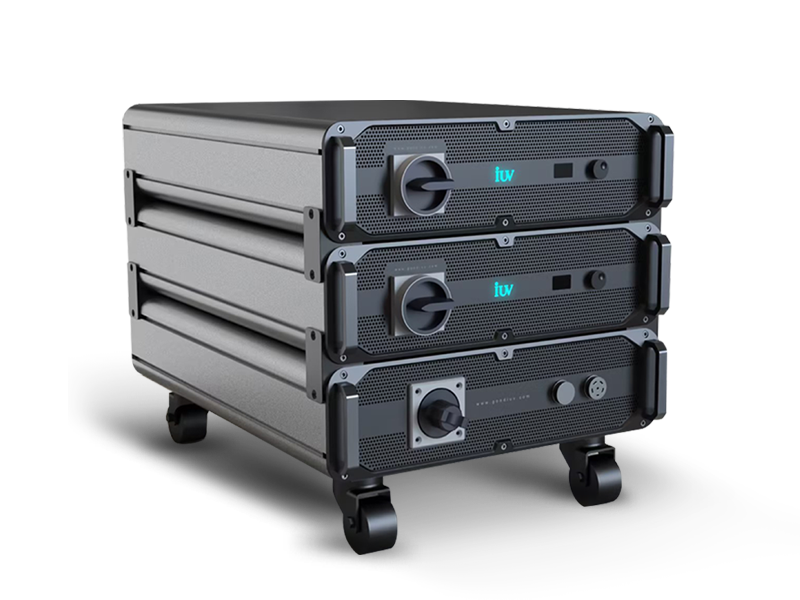

Modular Power Control System
IUV is here to improve the printing industry with curing quality, curing speed, reliability, expand ability, long-term stability and intelligent performance.
| Rated Voltage | 360~410VAC 3PH 50/60Hz |
| Maximum Power | 84KW MAX (Max Power Adjusted Per Customer Config) |
| Maximum Current | 128A MAX (Max Power Adjusted Per Customer Config) |
| Power Efficiency | Up To 94% |
| Power Factor Of Power Supply | Up To 98% |
| Master Module Plus Caster Size (L*W*H mm) |
725*485*235mm |
| Layer Of LED / Mercury Light Module Size (L*W*H mm) |
725*485*135mm |
About Modular Power Control System
The innovation of the IUV modular power supply lies in the power protection, intelligent control, real-time data interconnection,and load balancing
make the IUV power supply system a highly advanced and reliable solution for ensuring optimal performance, energy efficiency, and longevity in curing systems.
Modular Design
Adaptable to customization applications with strong scalability.
Electric Protect
Unique technology ensures
system stability and lifespan.
Intelligent Control
Smart automatic LED UV
control driven by real-time data.
Real-time Data-cross
Instantly integrates and synchronizes local-cloud data.
Power Load-balance
Efficient system performance,
achives power distribution stability.

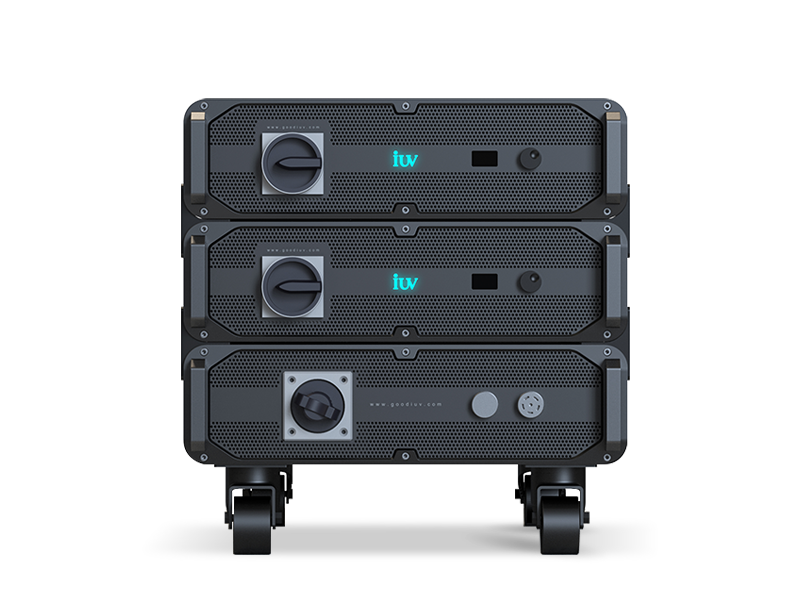

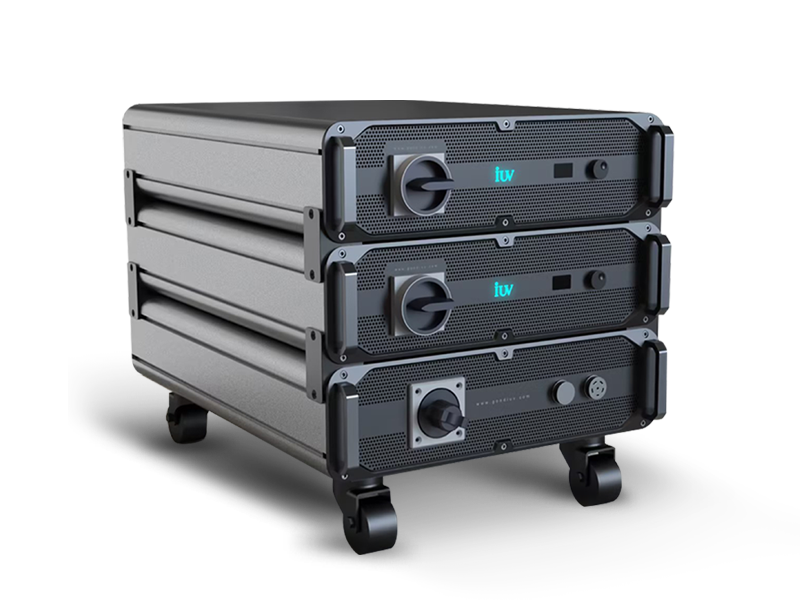

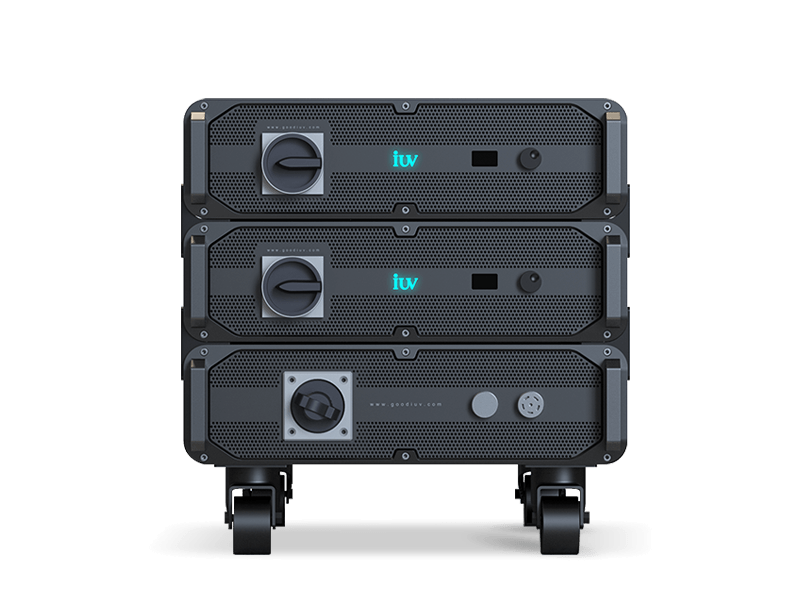

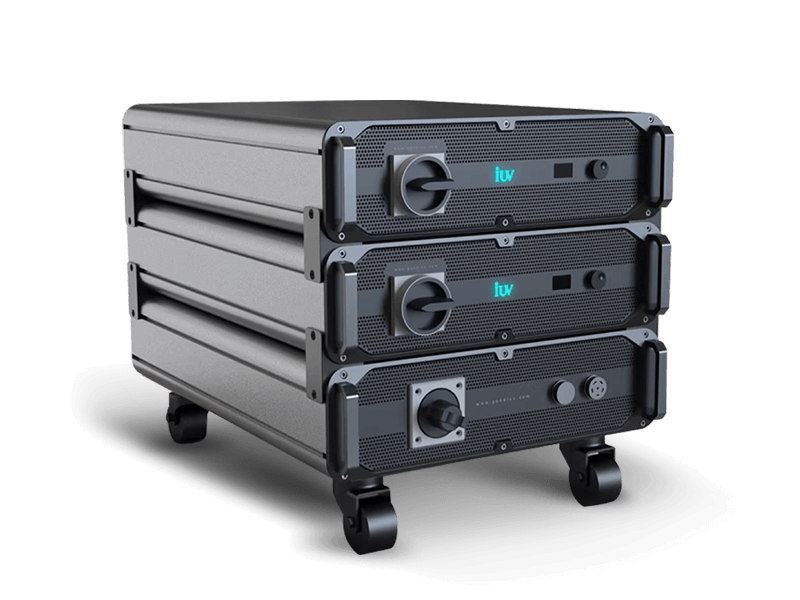

Modular Design And Structure
Built For Future Growth
Allows printers to tailor and upgrade the UV system at any time to meet specific requirements.
This flexibility ensures seamless adaptation to evolving printing demands and new business opportunities. By reducing the need for full system replacements, it also helps lower long-term upgrade costs.
Enhancing Flexibility and Customization
Efficient Maintenance and Reduced Downtime
Accelerated Time-to-market
Cost Savings through Standardization

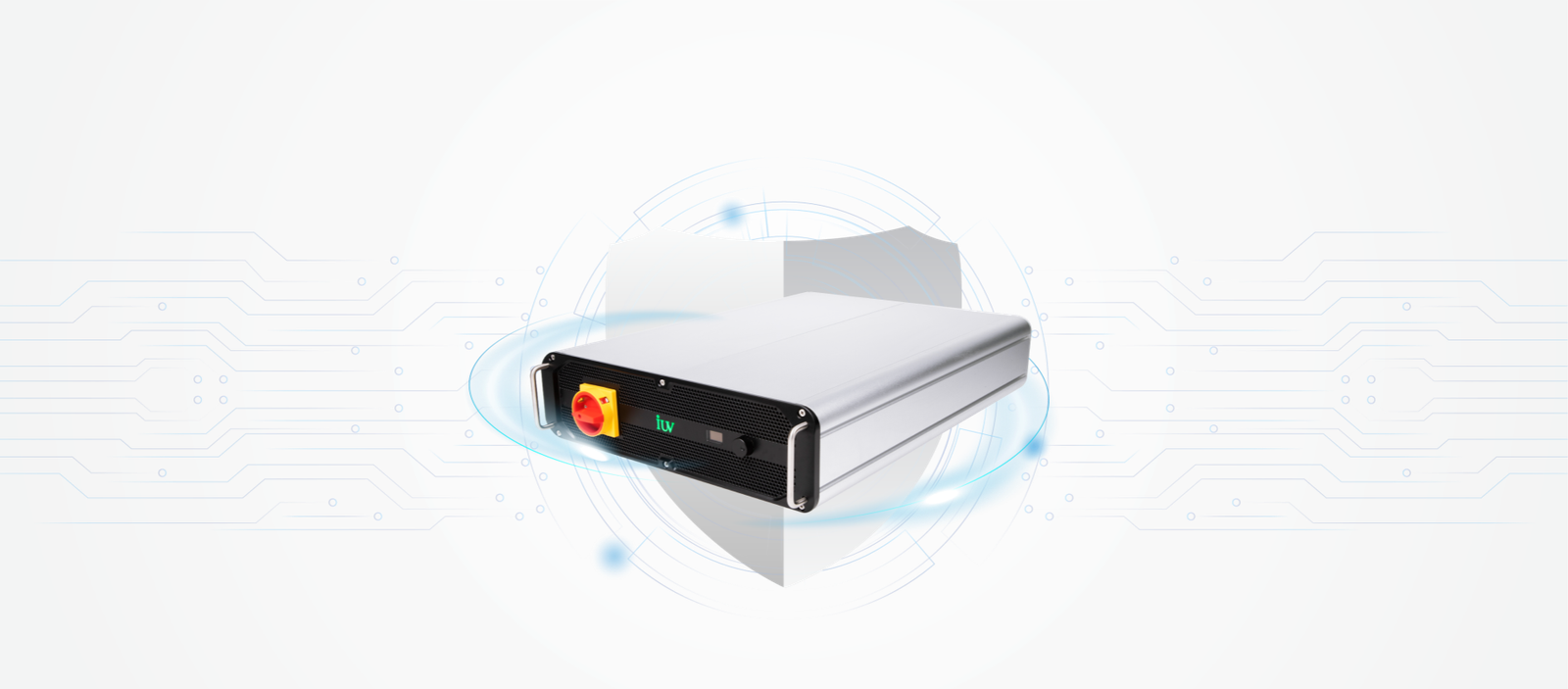

Electronic Protect Technology
Build For Long-term Stability
Short Circuit Protection
Over-current Protection
Open Circuit Protection
Over-temperature Protection
Over-voltage Protection
Leakage Protection
Intelligent Control Technology
Build For Precision
Powered by real-time printing process data, enabling fully automatic control for optimal performance.
This technology ensures consistent output quality while minimizing errors and downtime, contributing to cost savings and sustainable operations.
Automatic
Material Sensing
Self-regulating
Function Area Ajusting
Self-activating
Power Adjusting
Self-propelling
Mercury-LED ldentifying
Intelligent Operating
Modes Switching

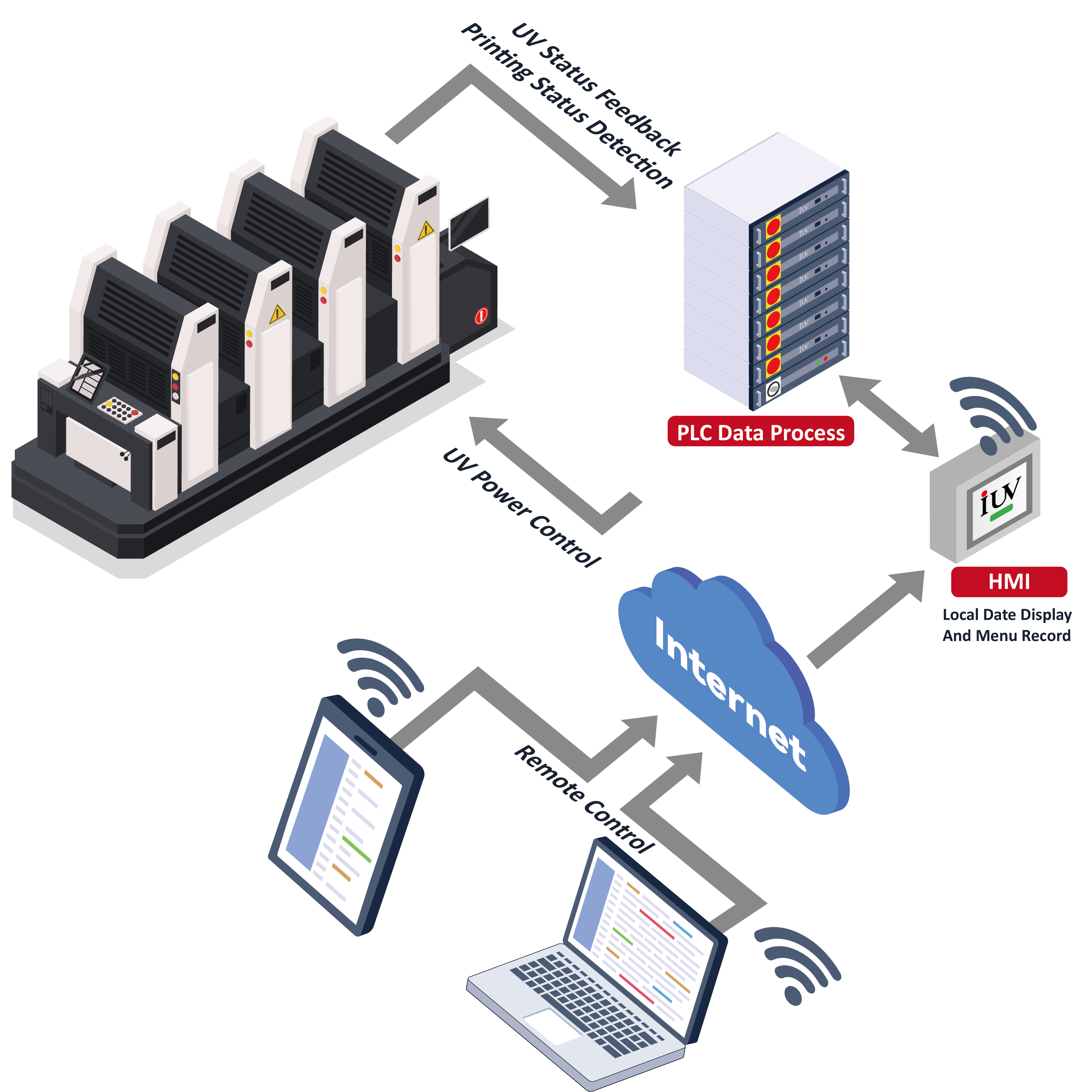

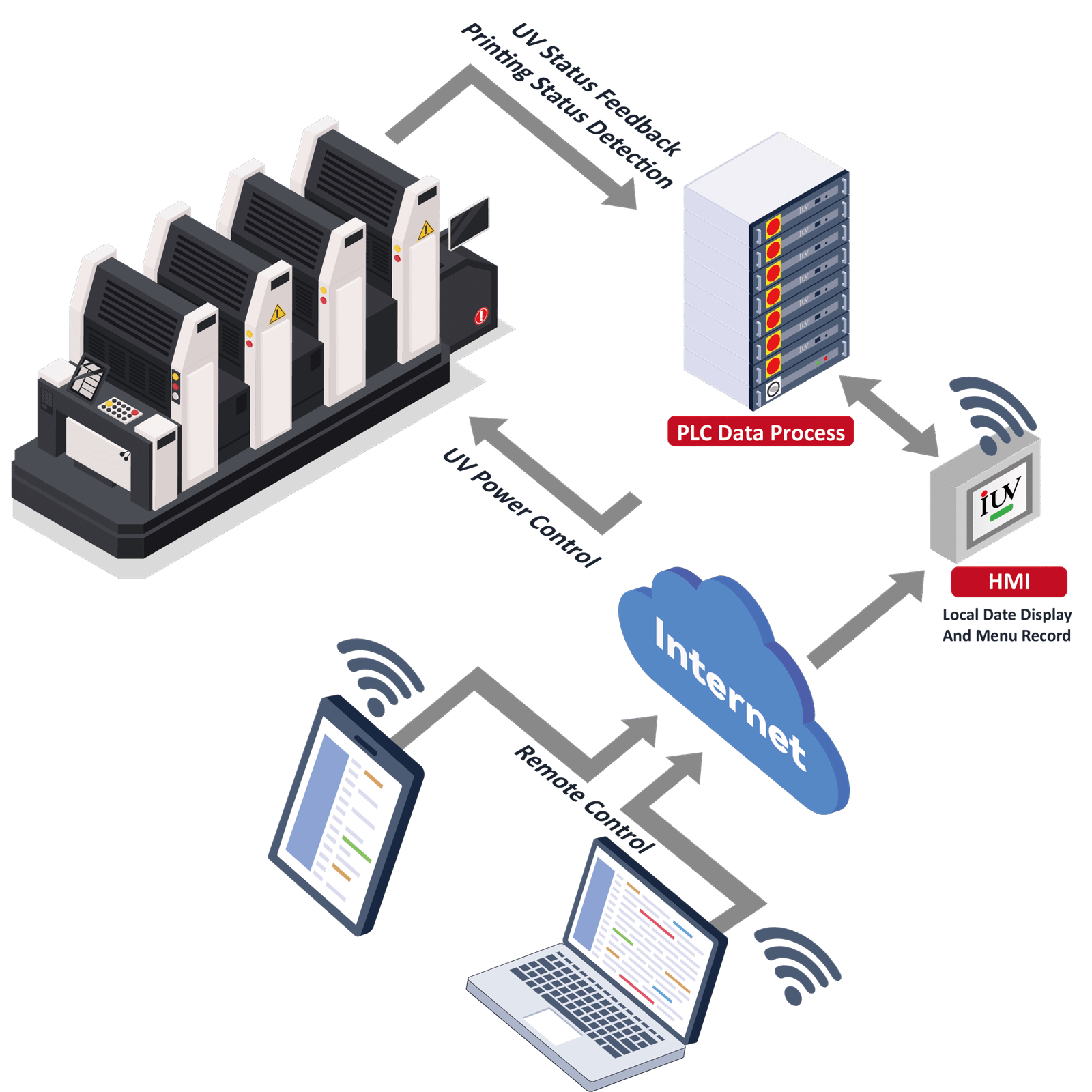

Real-time Data Technology
Build for Simplicity
IUV’s Real-Time Data Technology advanced system enables seamless performance tracking, rapid anomaly detection, and efficient remote updates, ensuring your operations are both responsive and resilient.
Access real-time data to oversee operations, facilitating prompt decision-making and operational efficiency.
Instantly identify and address irregularities, minimizing disruptions and maintaining optimal performance.
Implement system updates remotely, reducing downtime and ensuring your technology remains current.
Real-time Monitoring
Rapid Detection
Remote Updates

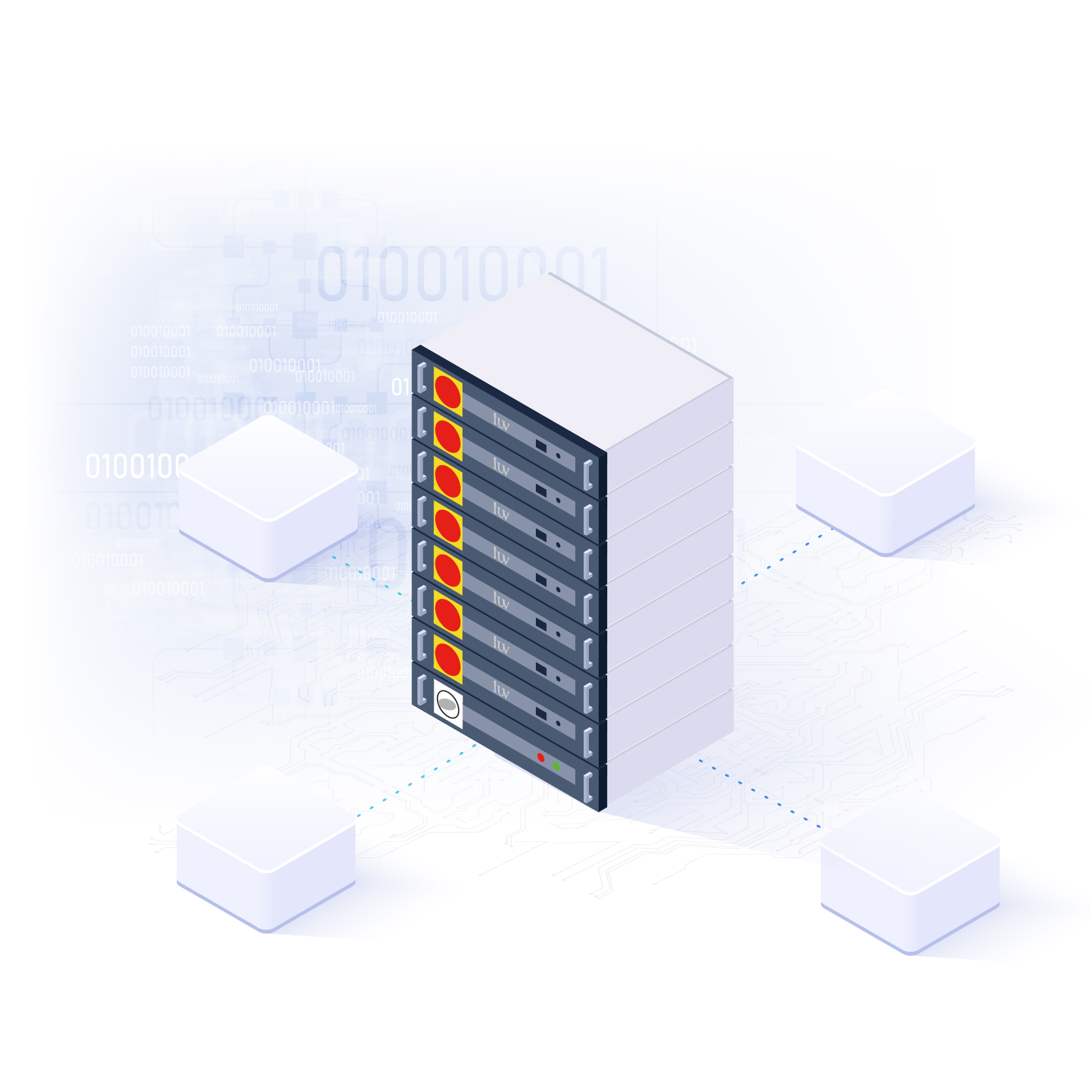

Power Load Balance Technology
Build for Robustness
The system improves overall stability and reliability by reducing downtime and performance loss, ensuring continuous and efficient operation in demanding environments.
If an LED power supply fails, the system intelligently detects the issue and automatically redistributes the load among the remaining functional power sources.
This mechanism prevents overloading of any single power supply, ensuring uninterrupted system function. It maintains stable power output to prevent performance degradation, extends the lifespan of remaining power supplies, and reduces the risk of cascading failures.
As a result, the system maintains optimal performance even under adverse conditions, providing a resilient and dependable solution.
4 LED UV Curing Lamps In Total 1.6kw, IUV automatic sensing technology energy saving.
