Abstract
Tackiness after applying UV overprint varnish is a common label-printing defect with several possible causes. The problem may originate in the varnish surface, the printed ink beneath it, the interface between the layers, or the final LED-UV curing stage. A label can appear glossy and dry while still showing weak rub resistance, blocking, ink transfer, or poor adhesion during converting. This article explains how label converters, OEMs, and process engineers can diagnose tacky UV ink after overprint varnish. The focus is on print-layer sequence, varnish weight, wavelength compatibility, irradiation, energy dose, substrate response, and structured quality testing.
Introduction
A UV overprint varnish is commonly used to protect label graphics, improve gloss or matte appearance, and increase resistance to abrasion and handling. When the finished label remains tacky, the varnish is often blamed first. That conclusion can be incorrect.
The tack may come from an undercured varnish surface. It may also come from an undercured ink film below the varnish, poor intercoat adhesion, excessive coating weight, or an unsuitable LED wavelength for one of the materials. The problem can be isolated to opaque white, dense black, metallic ink, or a specific colour sequence.
A useful investigation begins by identifying where the weakness is located. The process must then examine the full layer stack: substrate, printed ink, any interstation cure, overprint varnish, final cure, and downstream handling. Each layer changes the curing requirement of the next.
Tacky UV Ink After Label Overprint Varnish Must Be Defined Clearly
Tackiness can describe several different defects. A surface may feel sticky immediately after the lamp. It may become tacky only after the web is rewound. It may pass a finger-touch check but fail dry rub, scratch, tape adhesion, or blocking resistance after conditioning.
A tacky surface can originate in the varnish itself. This is common when the top layer receives insufficient final dose or experiences oxygen inhibition. The varnish may look glossy but remain weak at the surface. It can mark under guide rollers, transfer in the rewind roll, or collect dust.
The defect can also originate beneath the varnish. A printed ink layer may be only partly cured before varnish application. The varnish can seal the surface while the lower ink film remains weak. Pressure, heat, or flexing can then reveal the weakness during slitting, die cutting, dispensing, or label application.
The first task is to compare the finished varnished label with an unvarnished printed sample from the same job. If both samples are tacky, the main issue may be the printed ink or its cure. If only the varnished sample is tacky, the varnish layer, coating weight, cure sequence, or layer compatibility becomes more likely.
Map the Actual Layer Sequence

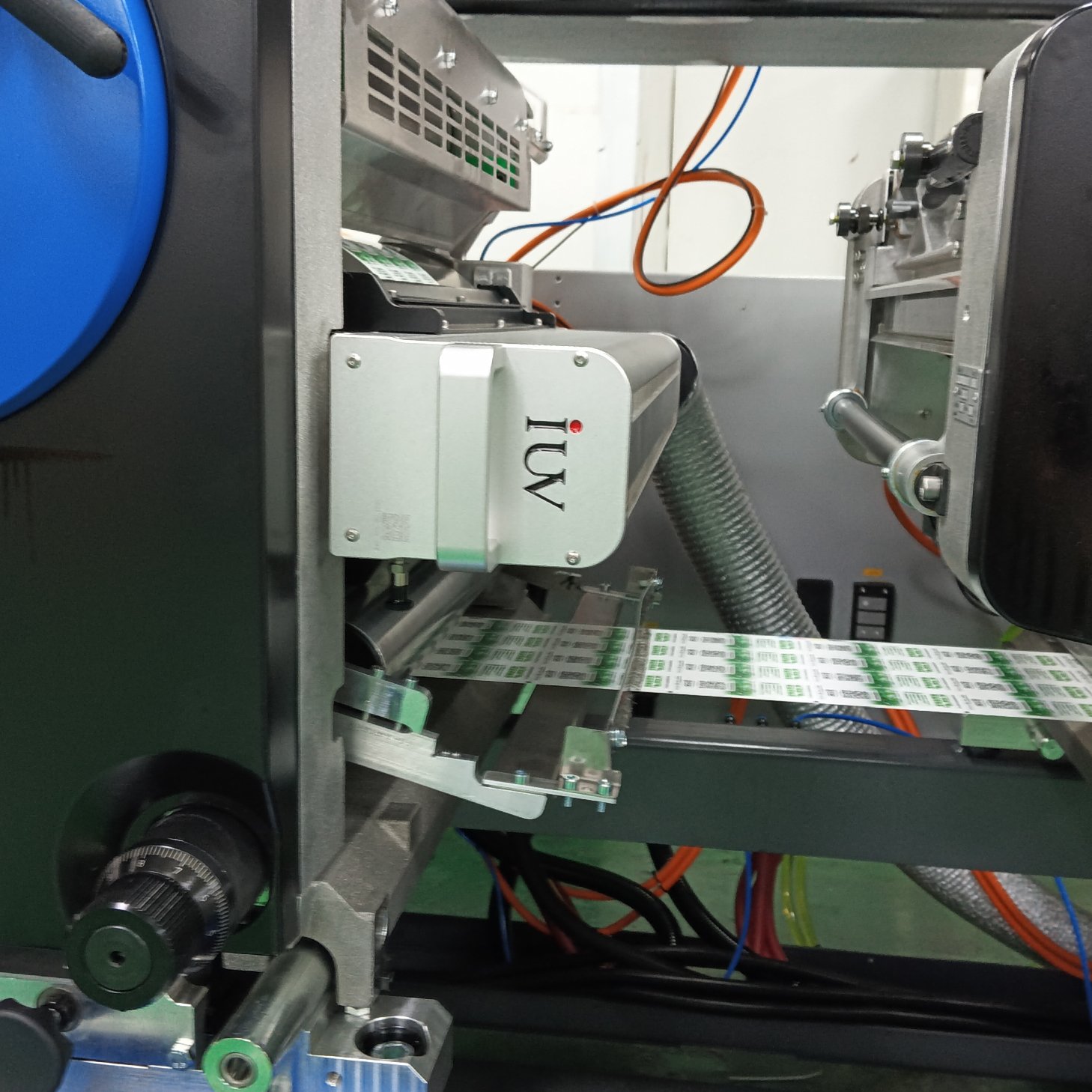

The print sequence should be documented before the lamp settings are changed. A narrow-web flexographic job may print one or more colours, use an interstation LED head for pinning, apply overprint varnish through a coating unit, and receive final cure before die cutting or rewinding.
Each curing position should have a defined purpose. Interstation exposure may stabilise a colour before the next printing unit. Final cure should complete the reaction through the full ink-and-varnish stack. Using the same high output after every unit can create unnecessary heat and may reduce the ability of the varnish to wet or adhere to the ink surface.
A common issue occurs when an ink layer is cured too strongly before the varnish is applied. The ink may become less receptive to the varnish, causing poor intercoat adhesion. The finished label can then show patchy protection, cracking, flaking, or an apparent tack defect after mechanical stress.
The opposite condition is also possible. If the ink receives too little pinning, it may move or mix before varnish application. The varnish can then lock in poor print definition, uneven ink distribution, or contaminated surface areas. The correct sequence provides enough stability for printing while preserving a compatible surface for the varnish.
Check LED Wavelength Compatibility Across Every Layer
LED-UV curing systems commonly operate at 365 nm, 385 nm, 395 nm, or 405 nm. The ink and overprint varnish must each contain photoinitiator systems that respond to the selected wavelength. Compatibility cannot be assumed because both products are described as UV materials.
A flexographic ink may cure well under a given LED wavelength while the varnish responds poorly. The reverse can also happen. A varnish may develop a hard surface while the heavy ink film beneath it remains undercured. This is more likely when the printed layer is opaque, dark, metallic, or heavily pigmented.
The ink supplier and varnish supplier should confirm compatibility with the LED wavelength and the intended cure sequence. The review should cover process colours, opaque white, dense spot colours, metallic inks, varnish, and any special-effect coating. The complete stack must be assessed, not only individual samples.
A poor wavelength match often leads operators to increase lamp output. This can raise web temperature and still fail to produce stable through-cure. Correct material matching gives the process a wider and more reliable operating range.
Separate Irradiance From Energy Dose
Irradiance is the instantaneous optical power delivered to the web. Energy dose is the total optical energy received during exposure. Both values influence cure, but they do not describe the same condition.
High irradiance helps initiate a rapid curing reaction. Adequate dose supports cure through the thickness of the ink and varnish layers. A varnish can show acceptable surface gloss with insufficient total dose beneath the surface. A thick ink film can remain weak even when the top varnish appears dry.
Press speed, lamp-to-web distance, illuminated length, and output uniformity affect the actual dose. The measurement should be taken at the substrate plane with an instrument suitable for the LED wavelength. The output should be checked across the active print width, including the outer lanes.
The final-cure setting should be based on the most demanding approved print stack. A light process-colour job may need less energy than a job with opaque white and high-build varnish. The recipe should distinguish between these conditions rather than applying one generic lamp setting to every label.
Control Overprint Varnish Weight Through the Coating Unit
Overprint varnish thickness strongly affects cure response. On a narrow-web press, varnish is often applied through an anilox roll and chamber system. Anilox volume, cell condition, doctor blade condition, chamber pressure, and varnish viscosity determine the applied coating weight.
A varnish layer that is too thick may require more energy for complete cure. It can remain tacky at the surface or weak within the film. A heavy coating can also increase web temperature and reduce the cure margin on heat-sensitive label materials.
A varnish layer that is too thin may cure easily but fail to provide the expected abrasion resistance or surface protection. The target coating weight should be selected for the end-use requirement, not increased solely to obtain higher gloss.
When tack occurs only in varnished sections, compare coating weight across the web. Check the anilox roll for plugged cells, wear, or local contamination. Uneven coating transfer can create gloss variation and local tackiness that looks like a lamp-uniformity problem.
Consider Ink Film Thickness and Pigment Loading
Ink-film thickness affects the amount of energy required for through-cure. In flexography, anilox volume, ink transfer, plate design, chamber pressure, and ink rheology control the deposited film. A thicker ink film may require a different final-cure condition from a thin process-colour layer.
Opaque white, dense black, dark spot colours, and metallic inks deserve separate testing. Their pigments can reduce the amount of usable LED energy that reaches the lower part of the ink film. A cured varnish above the ink does not prove that the underlying ink has completed its reaction.
If tack appears only above one colour, compare its anilox specification, ink batch, pigment loading, and film thickness with the other stations. The root cause may be excessive ink laydown rather than insufficient lamp output.
The investigation should also inspect ink transfer stability. Plugged anilox cells, worn cells, incorrect doctor blade pressure, or poor viscosity control can create changes in ink-film thickness during a run. The resulting cure variation may appear after the varnish station, even though the source lies in an earlier print unit.
Diagnose Oxygen Inhibition at the Varnish Surface
Free-radical UV varnishes can be affected by oxygen at the exposed surface. Oxygen inhibition may leave the varnish slightly tacky, reduce rub resistance, and cause dust pickup. The condition becomes more visible when dose is low or varnish thickness is high.
The first checks should be physical and measurable. Confirm lamp output, working distance, press speed, lamp-window cleanliness, coating weight, and wavelength compatibility. Then compare a fresh sample with a sample tested after a defined dwell period.
The varnish surface may become more problematic under pressure in the rewind roll. A sample that feels acceptable at the press exit can block or mark after it is wound. Blocking resistance should therefore be tested under conditions that represent the actual roll build and dwell time.
If surface inhibition remains a recurring issue, the varnish chemistry may require review. A formulation designed for the selected LED wavelength and air-cure conditions can provide a more stable result than increasing output beyond the practical process limit.
Maintain Intercoat Adhesion Without Overcuring the Ink
The varnish must bond to the printed ink layer. This requires a compatible surface condition at the time of coating. An ink surface that is too wet can allow mixing or contamination. An ink surface that is overcured can reduce wetting and adhesion of the varnish.
Intercoat adhesion should be tested separately from final surface tack. Tape pull, cross-hatch checks, flex testing, and rub testing can help identify whether the varnish is detaching from the ink rather than remaining uncured. The affected area should be examined after die cutting, creasing, or label dispensing where relevant.
The cure sequence can be adjusted by reducing or relocating interstation exposure, changing the ink order, or modifying the final-cure stage. The correct approach depends on the specific ink and varnish combination. It should be validated with the supplier’s material guidance and the actual press configuration.
A process that relies on maximum pinning before every station often has less flexibility. Controlled pinning followed by a robust final cure usually provides a more stable layer structure.
Review Substrate Temperature and Web Handling
LED-UV systems reduce direct infrared exposure compared with many conventional UV sources, but the printed web can still gain heat through absorbed optical energy. Multiple ink layers, high coverage, and thick varnish can raise substrate temperature before rewinding.
Thin BOPP, PE, PP, PET, and shrinkable film facestocks can respond through curl, tension variation, registration movement, or deformation. A warm web can also increase blocking risk when a partly cured varnish enters the rewind roll.
Temperature should be measured after the final cure stage and before rewinding. The test should include the highest expected print coverage, normal press speed, active curing heads, and the intended cooling arrangement. A low-coverage sample may not show the thermal load of the commercial job.
If the web temperature is excessive, the process should first review wavelength matching, coating weight, ink-film thickness, and interstation exposure. Raising final lamp power without addressing these factors may worsen the defect.
Support Low-Migration Label Applications
Low-migration applications require compatible inks, varnishes, adhesives, substrates, cleaning materials, and approved cure conditions. A label that appears dry is not necessarily suitable for a sensitive packaging structure.
The production record should identify the approved ink set, varnish, anilox specification, substrate construction, LED wavelength, lamp settings, press speed, and quality checks. Any change to the material stack should be assessed before production release.
Tackiness in a low-migration process should not be corrected by an undocumented lamp adjustment. The cause must be identified and the revised condition validated through the approved quality procedure. This protects both product performance and process traceability.
Check Lamp Windows, Cooling, and Output Uniformity
Lamp-window contamination can reduce delivered energy and create uneven cure. Ink mist, coating splash, adhesive debris, dust, and paper lint can accumulate on the protective window. A local deposit can cause tack in one web lane while other areas appear normal.
Cooling performance also affects output consistency. Air-cooled LED heads require clean filters and functional fans. Water-cooled systems require stable flow, suitable coolant condition, leak checks, and alarm verification. A thermally limited lamp can lose output during a long run.
Output should be measured across the usable width at the substrate plane. The measured values should be recorded by lamp head and compared over time. This makes gradual output loss visible before a tack or blocking defect reaches production.
Use a Controlled Diagnostic Sequence
A controlled test should begin with the approved substrate, ink set, varnish, anilox, and press speed. Clean the lamp window, verify working distance, and measure LED output. Then run one unvarnished printed sample and one varnished sample under the same base conditions.
Test the samples for surface tack, rub resistance, scratch resistance, adhesion, and blocking after conditioning. Compare light process colours with heavy solids, opaque white, and coated areas. This identifies whether the defect follows the ink, the varnish, or the full stack.
If the unvarnished print passes but the varnished sample fails, inspect varnish compatibility, coating weight, final dose, and oxygen inhibition. If both fail, investigate the ink chemistry, ink-film thickness, and earlier cure stages. If the defect occurs only in one lane, inspect cross-web lamp uniformity, anilox condition, and local contamination.
Only one major variable should be changed per test. This produces evidence that can be used to establish a stable recipe instead of creating a new unknown condition.
Conclusion
Tacky UV ink after overprint varnish is a layer-stack problem until proven otherwise. The defect can arise from the varnish surface, the underlying ink, the interface between them, or the final cure process. Reliable correction requires each possibility to be tested in sequence.
A stable label process matches the LED wavelength to every material layer, controls ink and varnish film thickness, separates pinning from final cure, and verifies output at the web. When the complete print-and-varnish stack is validated under real production conditions, tackiness, blocking, and weak surface performance can be addressed without compromising adhesion or substrate stability.
