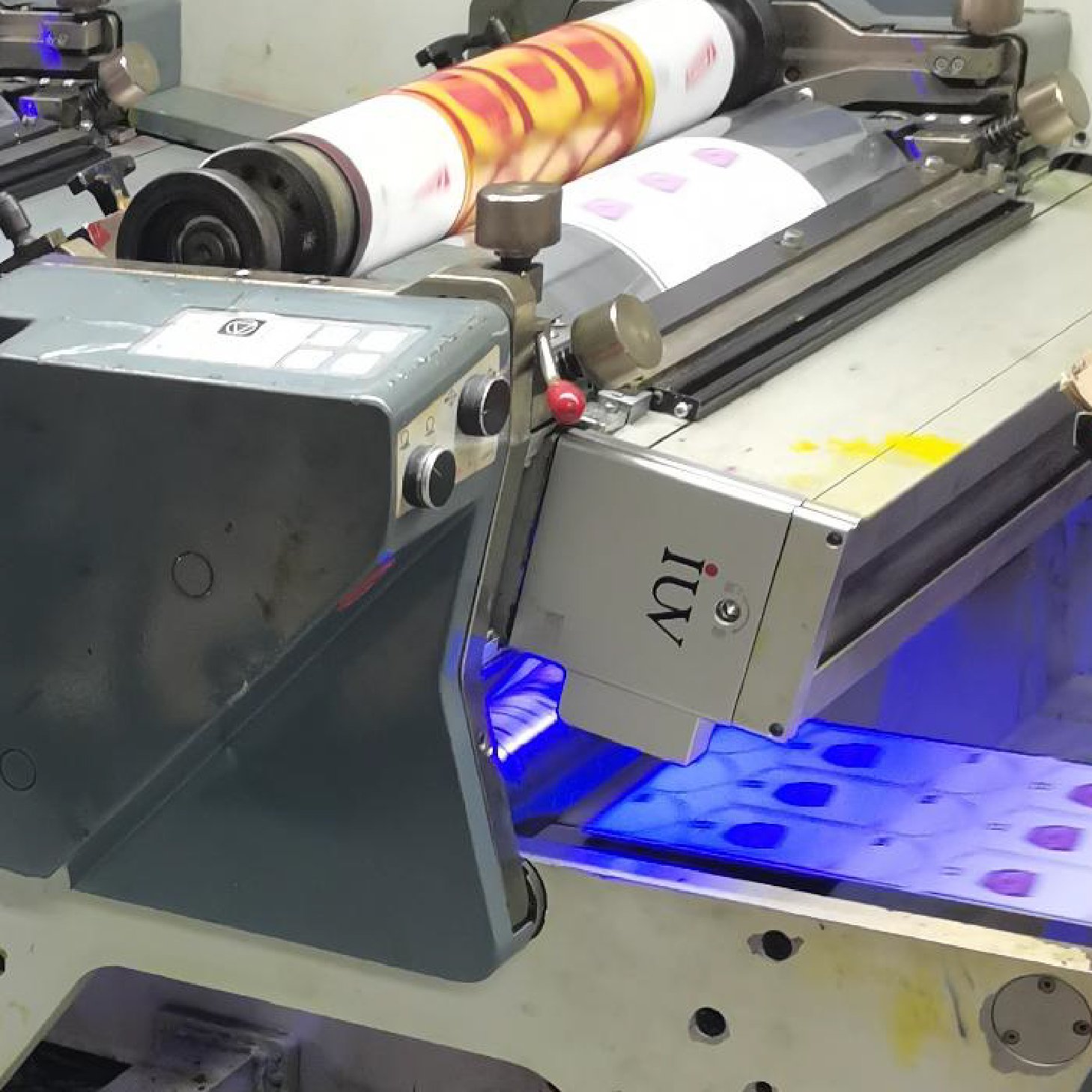

Abstract
Smearing in high-speed LED-UV offset printing is often treated as a simple lamp-power problem. In practice, low-dose curing can result from several linked conditions: insufficient exposure time, incorrect wavelength matching, unstable ink-film thickness, reduced output at the sheet plane, optical-window contamination, or an unsuitable cure sequence. The defect may appear as setoff in the delivery stack, marking on transfer surfaces, weak rub resistance, or smearing during downstream converting. This article provides an engineering approach to eliminating smearing caused by low-dose curing on sheetfed LED-UV offset presses.
Introduction
LED UV offset troubleshooting should begin by defining the defect accurately. Smearing can occur when partially cured ink transfers from the printed sheet to another surface. That surface may be a delivery sheet, a transfer cylinder, a guide, a pile board, a coating unit, or a converting component.
The defect often becomes more visible as press speed increases. At higher speed, each sheet passes through the LED exposure zone more quickly. If the irradiance, illuminated length, or output-control strategy does not compensate, the printed ink receives a lower energy dose.
Low dose is not the only cause of smearing. Excess ink film, poor ink-substrate adhesion, oxygen inhibition, unstable fountain solution, and improper interdeck curing can produce similar symptoms. A structured troubleshooting method separates these causes before the lamp setting is changed.
Distinguish Smearing From Other Surface Defects
True smearing involves movement or transfer of ink after printing. It may leave a visible streak, dirty mark, colour transfer, or loss of detail. The defect can occur immediately after the print unit or later in the delivery stack.
Setoff is a related condition. It occurs when the printed surface transfers ink or coating to the back of the next sheet in the pile. Setoff can indicate incomplete cure, excessive pile pressure, elevated sheet temperature, or insufficient delivery separation.
Scuffing differs from smearing because it is normally caused by abrasion of a cured or partly cured surface. Poor scuff resistance may still indicate low cure, but it can also result from a weak coating film or unsuitable surface protection.
Doubling, slur, and mechanical ghosting are print-transfer defects rather than cure defects. They originate in the ink train, blanket, plate, or sheet transport. Before investigating LED output, confirm that the visible mark is caused by post-print ink movement and not by a mechanical printing issue.
LED UV Offset Troubleshooting Begins With Delivered Dose
Irradiance is the instantaneous optical power delivered to the sheet surface. Energy dose is the total energy received during the exposure period. At high press speed, exposure time becomes shorter because the sheet passes through the illuminated zone more quickly.
A lamp can display a normal output setting while the actual dose at the printed sheet is insufficient. The working distance may have changed, the lamp window may be contaminated, or the head may not provide enough illuminated length for the intended production speed.
The first measurement should be taken at the actual sheet plane. Use an instrument suitable for the LED wavelength. Measure the output across the printable width, not only at the centre. A low-output edge can create smearing in one side of the delivery pile while the centre of the sheet appears acceptable.
The measured result should be compared with the approved job recipe. The recipe should identify the lamp wavelength, working distance, press speed range, ink set, coating condition, and final-cure position. If the press is operating outside that range, the displayed power setting has limited diagnostic value.
Check Press-Speed and Lamp-Control Synchronisation
At high speed, the press and curing system must operate as a coordinated process. The LED output should follow the actual press speed, especially during acceleration, deceleration, inspection, and restart events.
If output rises too slowly when the press accelerates, sheets printed during the transition may receive low dose. If output remains too low at steady production speed because the speed signal is scaled incorrectly, smearing may appear throughout the run.
The speed signal should represent real sheet transport rather than only a motor command. The control system should also account for response delay between the speed measurement, the controller, and the LED head. A delay can create short sections of marginal cure that repeat after every speed change.
A controlled speed-ladder test is useful. Run the same approved sheet at several defined speeds while holding the other variables stable. Mark each sample by speed and inspect cure performance after normal conditioning. If smearing begins above a specific speed, the relationship between dose, exposure length, and lamp output should be reviewed.
Confirm LED Wavelength and Ink Compatibility
LED curing systems commonly operate at 365 nm, 385 nm, 395 nm, or 405 nm. The UV offset ink, varnish, or coating must contain a photoinitiator system that responds to the selected wavelength. A poor match can create low cure even when the lamp delivers high measured output.
An ink developed for broad-spectrum conventional UV may not cure efficiently under a narrow-band LED source. Its surface may appear dry during press inspection but remain weak beneath the surface. At high speed, reduced exposure time makes this condition more visible.
Opaque white, dense black, dark spot colours, metallic inks, and high-pigment formulations require separate attention. These materials can limit light penetration through the ink film. A standard process-colour recipe may not provide enough cure for a dense solid or high-opacity base layer.
The ink supplier should confirm compatibility for the intended lamp wavelength and press configuration. The review should include the final ink stack, not only individual colours. A UV varnish, coating, or adhesive layer can change the cure response of the printed structure.
Control Ink Film Thickness Before Increasing Output
Heavy ink film is a common cause of apparent low-dose curing. A thick offset ink layer can require more energy for through-cure. If the surface cures first, the lower part of the film may remain weak and transfer under pressure or friction.
In sheetfed offset, ink-film thickness is influenced by roller settings, ink tack, ink temperature, plate coverage, blanket condition, packing, and dampening balance. Dense solids often carry a thicker film than halftones or fine type. Those solids should be the primary test areas during troubleshooting.
If the press is applying more ink than the approved target, increasing LED output may not be the appropriate response. The process may become too hot or overly rigid in lighter areas while the heavy solids remain marginal. Ink transfer should first be returned to the intended condition.
On hybrid presses with a flexographic coating unit, coating thickness also matters. An anilox roll with excessive volume, damaged cells, or unstable coating transfer can apply a varnish film that requires more final dose. The coating unit should be checked when smearing occurs beneath or through a protective varnish.
Stabilise the Ink-Water Balance
UV offset printing depends on a controlled relationship between ink and fountain solution. Excessive water can weaken ink transfer, reduce colour density, increase emulsification, and affect the formation of a stable ink film. Insufficient water can cause scumming and unstable solids.
At high speed, roller temperature and fountain-solution behaviour can change during the run. The press may appear stable during makeready but develop inconsistent ink density after the rollers warm. The cure response then changes even though the LED settings remain constant.
The troubleshooting process should record fountain-solution conductivity or concentration, roller temperature, ink temperature, and density trends where appropriate. A cure problem that appears only after a long run may originate in changing ink-water balance rather than declining lamp output.
The approved LED recipe should be linked to a stable offset process. It cannot compensate for uncontrolled emulsification or excessive ink laydown. The press team should correct the ink-water condition before establishing a new cure setting.
Review Interdeck Curing and Final Cure Separately
Some sheetfed LED-UV offset presses use interdeck curing to pin an early ink layer before the next print unit. This can improve ink stability and reduce marking on transfer surfaces. However, interdeck curing should not be confused with final cure.
If an interdeck head delivers too little energy, the early ink layer can smear or contaminate later print units. If it delivers too much energy, it may reduce wet trapping or affect adhesion of the following ink or coating. The cure objective must be defined for each lamp location.
Final cure must provide sufficient dose for the complete print stack before delivery. A final lamp setting that works for a light process job may not cure a heavy solid, metallic ink, or varnished sheet at the same press speed.
Troubleshooting should identify where smearing first appears. If it begins at a transfer point between print units, review the interdeck pinning condition. If it appears in the delivery stack after final curing, investigate the final cure dose, coating weight, sheet temperature, and pile handling.
Address Oxygen Inhibition at the Ink Surface
Free-radical UV inks and coatings can be affected by oxygen at the exposed surface. Oxygen inhibition can reduce surface cure and leave the ink tacky or weak under rub. This condition may be more apparent at high press speeds because the available dose is lower.
The first checks should be physical and measurable. Confirm lamp output, wavelength, working distance, press speed, ink-film thickness, and optical-window cleanliness. Then compare the problem material with an approved ink or coating known to work under the same LED system.
A surface that feels dry is not always fully cured. Smearing may develop after the sheet enters the delivery pile, where contact pressure and heat can reveal a weak surface. Direct rub, scratch, adhesion, and blocking tests should be performed after a defined conditioning period.
If oxygen-related surface cure remains marginal, the ink or varnish chemistry may require review. Increasing lamp power beyond the stable process range can create heat or flexibility problems without resolving the material limitation.
Inspect Lamp Windows, Cooling, and Optical Alignment
Lamp-window contamination can reduce delivered energy significantly. Ink mist, paper dust, spray powder, coating splash, and pressroom debris can accumulate on the protective window. The lamp controller may still report normal operation while the sheet receives lower irradiance.
The window should be inspected using the approved cleaning procedure. Do not compensate for a dirty window by raising output. Clean the optical surface, verify the working distance, and measure irradiance again at the sheet plane.
Cooling performance also affects LED output. Air-cooled heads require clean filters, unobstructed airflow, and functional fans. Water-cooled systems require stable flow, correct coolant condition, leak checks, and active alarms. A system that is thermally derating may deliver less output during a long high-speed run.
Lamp alignment should also be checked. A tilted or displaced head can create low-output zones across the sheet. Edge smearing or a defect that appears in one print lane often indicates a uniformity or alignment issue rather than a general low-dose condition.
Manage Sheet Temperature and Delivery Conditions
LED-UV systems reduce direct infrared exposure compared with many conventional UV sources, but the sheet can still gain heat through absorbed optical energy, high coverage, and repeated curing stages. At high press speed, the delivery stack can retain heat if sheets are piled quickly.
Excess sheet temperature can soften an incompletely cured ink film and increase setoff risk. It can also affect coated board, thin synthetic sheets, and metallised substrates. The delivery condition should be reviewed together with cure performance.
Measure sheet temperature after final cure and within the delivery pile under representative production conditions. Check pile height, delivery spray settings where applicable, sheet separation, delivery fans, and cooling airflow. A cure setting can be adequate in an open sample but insufficient once the sheet is stacked under pressure.
If smearing occurs only in the delivery stack, the cause may be a combination of marginal cure and thermal pile conditions. Correcting either factor alone may not restore stable production.
Apply a Structured High-Speed Fault Test
A useful fault test changes one controlled variable at a time. Begin with the approved ink, substrate, and coating system. Clean the lamp window, confirm working distance, measure output, and establish the normal roller and dampening settings.
Run samples at a lower reference speed and at the target production speed. Compare solids, fine type, varnished areas, and outer-sheet lanes. Test each sample for rub resistance, adhesion, blocking resistance, and visible transfer after conditioning.
If the lower-speed sample passes and the high-speed sample fails, investigate energy dose, illuminated length, speed synchronisation, and output range. If both samples fail, investigate ink compatibility, ink-film thickness, surface contamination, and ink-water balance.
Document every measurement and setting. This prevents the press team from creating a new problem by changing lamp output, ink settings, and press speed simultaneously. A measured sequence identifies the actual cause of smearing.
Protect Low-Migration and Sensitive Applications
Low-migration work requires compatible inks, coatings, substrates, adhesives, and cleaning procedures. A smear-free surface does not establish complete application performance. The approved cure recipe should remain within the validated material and process limits.
If smearing occurs on a sensitive packaging job, do not make unrecorded changes to lamp output, ink set, varnish, or coating weight. The change may affect the approved cure condition. The process should be reviewed through the documented quality procedure.
Production records should include lamp settings, press speed, ink and coating batch information, measured output, and quality-test results. This supports traceability if a problem is found during conversion or after shipment.
Conclusion
Smearing from low-dose LED curing at high press speeds is usually a process problem with several possible causes. Delivered energy, wavelength compatibility, ink-film thickness, offset balance, optical condition, and delivery handling must be assessed together.
The most reliable corrective action begins with measurements at the sheet plane and a controlled speed comparison. Once the press confirms the true cause, it can adjust the cure recipe, ink transfer, lamp geometry, or delivery conditions without creating unnecessary heat or new adhesion problems. A documented high-speed process then provides stable cure and cleaner sheetfed UV offset production.
