Abstract
Broad solid areas and fine type do not create the same curing demand in narrow-web flexographic printing. Solid ink films may require greater through-cure, while fine text and reverse details require stable ink transfer, controlled pinning, and clean register. A curing system that provides enough energy for heavy solids can still create uneven exposure, excessive heat, or intercoat adhesion issues if lamp coverage is not arranged around the actual print layout. This article explains how label press OEMs, converters, and engineers can configure LED-UV lamp coverage for consistent cure across broad solids, fine type, and mixed-coverage artwork.
Introduction
LED UV flexographic printing often combines several graphic conditions on one label web. A job may include an opaque white panel, dense brand colours, fine positive text, reverse type, barcodes, halftones, and a protective varnish. These elements can sit in different lanes across the web and may pass through several flexographic units before final cure.
The curing requirement is therefore spatial as well as chemical. The lamp must deliver sufficient energy across the printable width, including the outer lanes. It must also support the different ink-film thicknesses created by solid areas and fine details. A nominal lamp width does not guarantee a uniform process across the actual image area.
Arranging lamp coverage means defining the usable optical width, working distance, curing positions, shielding, and output strategy for the printed web. The objective is stable cure for the most demanding solid areas without compromising fine print, temperature-sensitive substrates, or downstream coating adhesion.
Broad Solids and Fine Type Create Different Process Demands
Broad solids usually receive a heavier ink film than fine type or halftones. This is especially true for opaque white, dense black, high-strength spot colours, and large areas of flood colour. A thicker film can require more energy for through-cure because the incoming LED energy must support reaction through the full ink layer.
Fine type often carries less ink, but it remains sensitive to ink movement, dot gain, and trapping. Reverse text, small positive characters, and barcode elements can suffer when ink is not sufficiently stabilised before the next printing station. The issue may appear as filled-in counters, weak edges, reduced contrast, or contamination from a following colour.
The cure sequence should recognize these different needs. Broad solids may determine the final-cure requirement. Fine type may determine the amount of interstation pinning needed to preserve definition. Using one high-output setting at every cure point can create unnecessary exposure without improving the overall printed result.
The most demanding section of a job is not always the widest solid area. A dense solid at the edge of the web may combine high ink-film thickness with lower optical uniformity. This combination can create undercure in a location that receives less attention during routine inspection.

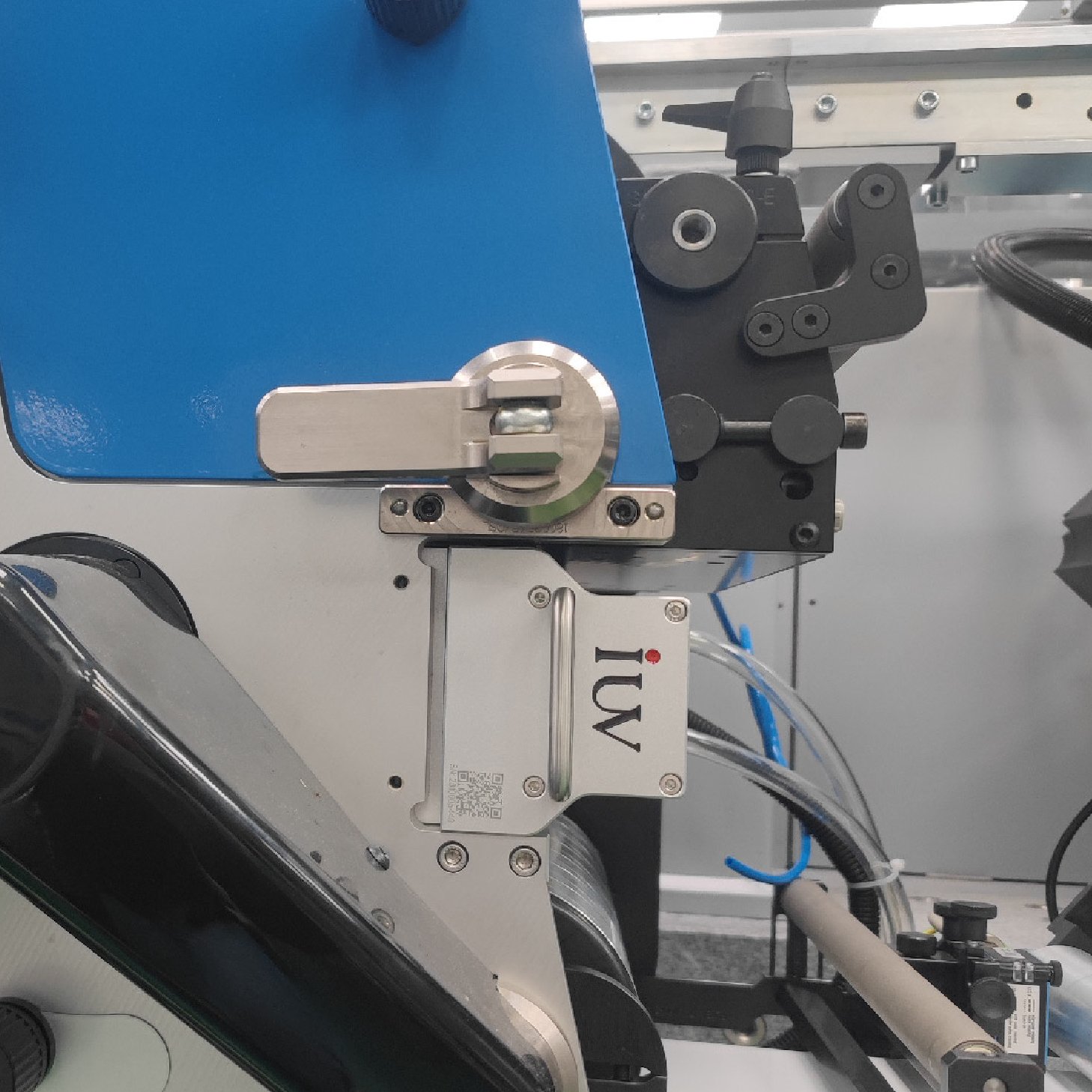

LED UV Flexographic Printing Requires a Defined Usable Curing Width
The mechanical width of an LED head is not the same as its usable curing width. The usable width is the zone where the lamp delivers verified output uniformity at the actual web plane. The printed image should remain within this zone, including normal web-tracking movement.
The system specification should define output measurements across the width at the intended working distance. Measurements should include the operator side, centre, and drive side. They should also cover the outer print lanes where lamp-edge effects can reduce delivered energy.
Web position must be considered. A narrow-web press can experience small lateral movements caused by web guiding, splice passage, roll condition, and tension variation. If a solid panel or critical barcode is placed near the edge of the validated zone, a minor web shift can affect cure consistency.
Lamp width should be selected with a practical margin beyond the maximum printed width. This margin should account for web wander, printed-image position, and the accuracy of the mechanical installation. It should not be based only on the nominal web width stated in the press specification.
Build a Print-to-Cure Coverage Map
A useful engineering tool is a print-to-cure coverage map. This map identifies which print stations contain broad solids, fine text, high-opacity inks, varnish, or special coatings. It also shows where those features sit across the web and which curing heads affect them.
The map helps determine whether a lamp should be installed after a specific flexo unit, after a group of units, or at the final cure position. It also helps identify whether the same head must support more than one print lane with different coverage conditions.
For example, an opaque white panel may run close to the drive-side edge, while small reverse type appears near the centre. The lamp must provide adequate dose to the opaque area without producing excessive heat in lighter zones. The exposure must also remain consistent if the web guide shifts the image position slightly.
The coverage map should be based on approved production artwork rather than an empty web or a simple colour bar. It should include the highest-coverage version of the design, as well as common variations such as a flood varnish, dark spot colour, or white backing layer.
Control Ink Film Thickness Through Anilox and Plate Selection
Anilox volume is a direct driver of cure demand in flexographic printing. A higher-volume anilox generally transfers a thicker ink film. This can improve solid density and opacity, but it can also increase the energy needed for through-cure.
Broad solids should use an anilox specification that provides the required colour result without creating unnecessary film thickness. Excess ink laydown can make cure more difficult, increase heat absorption, and widen the difference between solid areas and fine type.
Fine text and line work often need a different cell geometry, line screen, or plate design from broad solids. The press setup should protect fine-detail transfer without starving solids or increasing dot gain. A compromise anilox can create uneven print quality and an unstable cure requirement.
Anilox cleanliness is equally important. Plugged or worn cells can reduce transfer in one area of the web or create inconsistent solids. When a cure defect appears in a specific lane, the cause may be ink-film variation rather than LED output. The diagnostic process should inspect anilox condition, chamber pressure, doctor blade condition, and ink rheology before adjusting lamp power.
Match Wavelength to the Heaviest Approved Ink Film
Common LED curing wavelengths include 365 nm, 385 nm, 395 nm, and 405 nm. The selected wavelength must match the photoinitiator package in the ink, coating, or varnish. This match is particularly important for broad solids because high pigment content can limit useful light penetration.
A thin fine-text ink film may appear cured under a wavelength that does not adequately cure a dense solid. The press could then pass a basic surface test while the broad solid remains undercured below the surface. This may cause weak rub resistance, blocking, poor adhesion, or failures during die cutting and label application.
The ink supplier should confirm LED compatibility for each major material. Process colours, opaque white, dark solids, metallic inks, high-opacity spot colours, and overprint varnishes should be evaluated separately. The final cure recipe should be based on the highest-demand approved material, not only on a standard process-colour set.
Correct wavelength matching reduces the need for excessive irradiance. This gives the press a wider operating margin and helps protect heat-sensitive films, especially where several high-coverage stations are used in sequence.
Arrange Pinning and Final Cure by Printing Function
Interstation LED heads should have a defined purpose. In many label jobs, their primary role is pinning. Controlled pinning can stabilise broad solids, reduce ink movement, and help preserve fine type before the web enters the next print unit.
Fine details may benefit from carefully controlled pinning because it helps maintain edge definition and reduces wet-on-wet contamination. However, excessive interstation exposure can reduce trapping or affect the adhesion of a later ink or coating. The target is sufficient stabilisation, not maximum cure after every station.
Final cure should be arranged around the completed print stack. This may include the final colour, overprint varnish, or protective coating. The final LED head should provide the required dose for the heaviest approved ink or coating film while maintaining uniform exposure across the active print width.
Each cure head should be included in the job recipe. The recipe should identify the lamp position, wavelength, output range, working distance, press speed range, ink set, and substrate. This allows the press to repeat the validated exposure sequence for mixed-coverage artwork.
Consider Optical Geometry and Web-to-Lamp Distance
Working distance strongly influences irradiance and cross-web uniformity. A lamp positioned too far from the web can lose useful irradiance and create a wider but weaker exposure profile. A lamp positioned too close may create mechanical-clearance issues, contamination risk, or uneven response from web flutter.
The required distance should be defined at the substrate plane. It should remain stable during production and should account for normal web movement. Thin films can flutter if air movement around the curing head is not controlled. This changes the effective distance and can create a local cure variation.
Optical shielding should prevent stray UV energy from reaching plates, anilox rolls, chamber seals, and exposed ink. Premature curing on these components can affect ink transfer and create cleaning problems. The shielding design should protect press components without reducing the verified output at the printed web.
If the curing system uses modular LED segments, the press team should understand how those segments overlap and how their output is controlled. Any transition between segments should be tested with solid bars and fine type placed across the full print width. The printed result should not change visibly at a segment boundary.
Measure Cross-Web Output With a Relevant Test Form
A cross-web validation form should include broad solid bars, dense colour patches, fine positive type, reverse type, barcodes, line work, and varnish areas. These features should be repeated from one edge of the web to the other. This makes output variation visible in the same geometry as the production job.
The test should be run at the intended production speed and at the defined working distance. Samples should be taken after lamp-window cleaning, after normal production time, and after any maintenance that affects lamp position or cooling. This reveals whether contamination or thermal drift changes the usable cure width.
Cure testing should include adhesion, rub resistance, scratch resistance, blocking resistance, and barcode readability where relevant. Fine type should be checked for edge sharpness and fill-in. Broad solids should be checked for through-cure and surface durability.
A visual result alone is not sufficient. A broad solid can look acceptable while remaining weak under a coating or during slitting. A fine barcode can appear sharp while its protective varnish remains undercured. The validation method should match the actual converting and end-use risks.
Manage Heat on High-Coverage and Film Jobs
LED systems reduce direct infrared exposure compared with many conventional UV sources, but broad solids and thick coatings can absorb significant optical energy. If several stations use high output, the web temperature can rise even when each individual lamp operates within its approved setting.
Thin BOPP, PE, PP, PET, and shrinkable facestocks require particular attention. Heat can lead to curl, dimensional change, tension variation, or registration movement. A broad solid printed near one edge can also create a local thermal difference across the web.
Web temperature should be measured during high-coverage jobs and after the full cure sequence. The test should include normal press speed, all active lamps, and the intended cooling arrangement. If temperature becomes excessive, the process should first review ink-wavelength matching, ink-film thickness, pinning levels, and cooling performance.
Reducing unnecessary interstation exposure often provides a better result than reducing final cure alone. The press should direct energy where it supports print stability and final performance, rather than applying the same exposure after every unit.
Support Low-Migration and Sensitive Label Applications
Low-migration label work requires control of inks, coatings, substrates, adhesives, cleaning procedures, and curing conditions. Lamp coverage is part of this process because an undercured edge lane or high-coverage solid can create a local quality risk.
The approved recipe should identify the print width, lamp configuration, output settings, material combination, and required quality checks. Operators should not move critical artwork outside the validated print zone or change lamp coverage without reviewing the cure result.
Particular attention is needed when opaque white, metallic inks, or heavy varnishes are used. These materials can have different cure demands from standard colours. The documented process should reflect the highest-demand approved combination.
Maintain Optical Uniformity During Production
Lamp windows can collect ink mist, dust, paper lint, coating splash, and adhesive debris. This can reduce output and create uneven exposure across the lamp width. A contaminated edge or local deposit can affect a broad solid or fine type in one lane while other areas remain acceptable.
Cooling performance also affects output consistency. Air-cooled systems require clean filters and unobstructed airflow. Water-cooled systems require stable flow, suitable coolant condition, leak checks, and alarm verification. Uneven module temperature can influence output across a segmented lamp head.
Output should be measured periodically across the print width and recorded by lamp head. These records help identify gradual changes before a production defect appears. They also support consistent quality when a job is repeated after a long interval.
Troubleshoot Defects by Location and Image Type
If broad solids show weak rub resistance while fine type appears acceptable, investigate ink-film thickness, pigment loading, wavelength compatibility, and final-cure dose. Check whether the solid sits near a lamp edge or a segment transition.
If fine type fills in or loses edge definition, inspect ink transfer, plate condition, anilox selection, interstation pinning, and registration. The root cause may be wet-on-wet ink movement rather than insufficient final cure.
If defects appear only on one side of the web, inspect lamp alignment, optical-window contamination, web tracking, working distance, and cross-web output uniformity. If defects appear after a long run, review cooling performance and the buildup of contamination on the lamp window.
A location-based diagnosis is more effective than changing overall lamp power. It helps preserve the approved cure condition for the full image while correcting the factor that affects a specific lane or graphic element.
Conclusion
Arranging LED lamp coverage for broad solids and fine type requires a print-layout approach to curing. The system must deliver uniform energy across the validated print width while accounting for different ink-film thicknesses, graphic functions, and material limits.
Stable results come from controlling anilox-driven ink laydown, matching wavelength to the highest-demand ink film, separating pinning from final cure, and measuring output across the web. When lamp coverage is validated with representative solids and fine details, narrow-web flexographic presses can maintain reliable cure and print quality across mixed-coverage label work.
