Abstract
High-speed UV flexographic printing requires a curing process that remains stable when press speed, ink laydown, artwork coverage, and substrate type change. A lamp setting that produces acceptable results during setup may become insufficient during acceleration, long production runs, or dense-coverage jobs. A stable cure window defines the operating range where the ink achieves the required cure properties without creating excessive web heat, poor intercoat adhesion, registration movement, or premature wear of press components. This article explains how OEMs, label converters, and production engineers can establish, validate, and maintain that operating window for LED-UV flexo presses.
Introduction

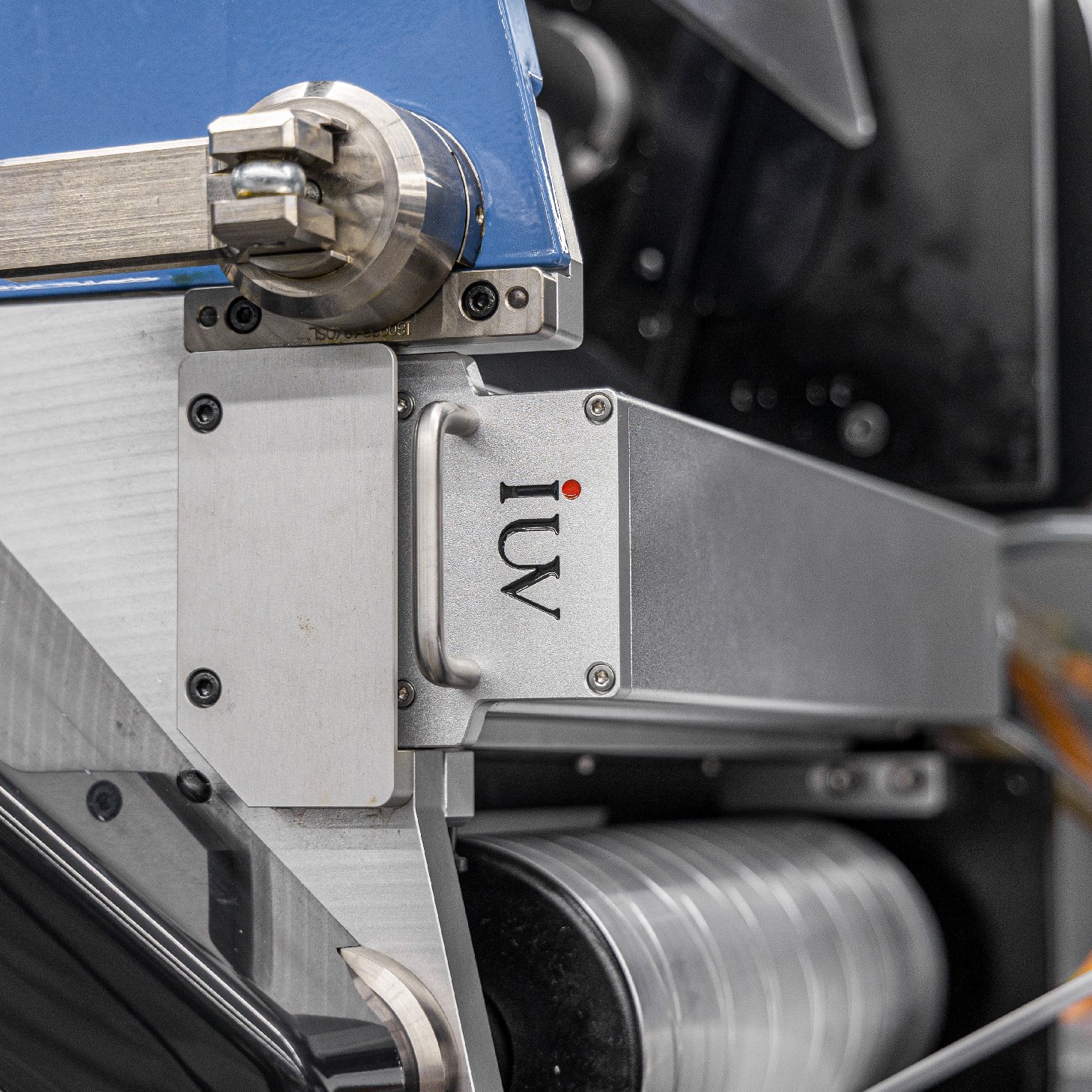

Flexo UV LED curing systems are increasingly used on narrow-web label presses because they provide controllable output, compact installation options, and rapid on-off response. Their value in high-speed production depends on process stability. The press must deliver enough energy to cure every approved ink and coating at normal running speed, while also controlling the limits that can affect the substrate, printing units, and finished roll.
The stable cure window is not a single lamp-power setting. It is a verified range of operating conditions. It includes the LED wavelength, irradiance, delivered energy dose, working distance, press speed, ink-film thickness, substrate construction, and curing sequence. It also includes the practical limits of web temperature, interstation adhesion, and press handling.
For label converters, this approach reduces dependence on operator judgment. It creates documented recipes for repeat jobs and provides a clear method for investigating quality changes. For press OEMs, it helps align lamp integration, controls, cooling, and safety functions with the actual needs of flexographic production.
Define the Lower and Upper Limits of the Cure Window
The lower limit is the minimum curing condition that produces acceptable ink performance. It should be confirmed through relevant tests, such as rub resistance, scratch resistance, tape adhesion, blocking resistance, and resistance to the converting process. The required tests depend on the label application and the materials involved.
The upper limit is equally important. Excess LED energy may increase web temperature, distort thin films, reduce intercoat adhesion, increase odor risk, or affect the pressure-sensitive adhesive. It may also raise the chance of plate contamination when stray light reaches the printing unit.
The stable cure window sits between these limits. It is broad enough to tolerate normal variation in press speed, lamp output, and ink transfer. A narrow window can produce frequent quality changes when the press moves from startup to full production speed. It can also make job repeatability difficult across shifts or between similar presses.
A useful cure window should be established with the most demanding approved conditions. These often include the highest production speed, the heaviest ink coverage, the thickest ink film, the darkest or most opaque colours, and the most heat-sensitive substrate. A process that works only on light coverage or thin process colours is not yet robust.
Flexo UV LED Curing Systems Must Be Validated at Running Speed
In a moving web process, exposure time changes with press speed. As speed increases, the web spends less time under the LED head. The system must deliver sufficient energy during normal production, not only during low-speed commissioning or visual inspection.
Irradiance describes the instantaneous power at the web surface. It is commonly expressed in watts per square centimetre. Energy dose describes the total energy received during exposure. It is commonly expressed in joules per square centimetre. Both values matter because high-speed cure requires adequate reaction initiation and sufficient total energy.
The effective exposure time depends on the illuminated length and web speed. A lamp with high peak irradiance may still provide an unsuitable process if its exposure footprint, working distance, or cross-web uniformity does not match the press application. The lamp should be evaluated at the actual substrate plane and at the normal production distance.
During validation, speed changes should be included deliberately. The press should be tested during acceleration, steady running, deceleration, and restart conditions. These transitions can reveal cure variation that does not appear in a fixed-speed trial. A stable system keeps output controlled during those events or adjusts output according to the speed signal.
Match LED Wavelength to the Ink and Coating Chemistry
Most industrial LED curing systems for narrow-web flexography operate near 365 nm, 385 nm, 395 nm, or 405 nm. The preferred wavelength depends on the photoinitiator package used in the UV ink, varnish, coating, or adhesive. Lamp selection should therefore begin with material compatibility rather than a general power requirement.
An ink that was designed for conventional broad-spectrum UV may not fully respond to a narrow LED wavelength. It may require excessive energy, show a tacky surface, or develop weak through-cure beneath the ink surface. Increasing lamp output may raise the web temperature while leaving the core problem unresolved.
The ink supplier should confirm the suitable wavelength and expected exposure range for each category of material. This includes process colours, opaque white, dense black, metallic inks, high-opacity spot colours, overprint varnishes, and tactile coatings. Opaque white deserves separate attention because pigment can limit light penetration through the ink film.
Correct wavelength matching helps establish a wider cure window. The press can achieve required cure performance without operating close to the maximum lamp output. This provides greater tolerance for small changes in lamp-window cleanliness, web speed, or ink laydown.
Ink Film Thickness Controls Cure Demand
In flexographic printing, anilox volume and ink transfer are major cure variables. A higher-volume anilox generally transfers a thicker ink film. This can improve opacity or solid density, but it also increases the energy needed for through-cure.
Heavy ink films are particularly important in opaque white, solid brand colours, reverse printing, and high-coverage label designs. A thick ink layer may form an apparently dry surface while remaining undercured below that surface. The resulting label may fail rub resistance, adhesion, die-cutting, or rewind blocking tests.
Anilox specification should be selected for the required graphic result and the capability of the curing system. If an ink film is heavier than necessary, higher LED output may be used to compensate. This can unnecessarily reduce the process margin, especially on heat-sensitive materials.
Stable ink transfer is essential. Anilox cleanliness, chamber pressure, doctor blade condition, ink viscosity, temperature, and plate design should be controlled during cure validation. When cure performance becomes inconsistent, these variables should be checked before changing the LED recipe.
Use Pinning and Final Cure as Separate Process Stages
Interstation LED exposure can pin ink before the web enters the next printing unit. Controlled pinning helps maintain fine dots, reduces ink movement, and supports clean overprinting. It can be useful for process-color work, fine type, and multi-station label designs.
Pinning should not automatically be treated as full cure. The energy required to stabilize an ink film is often lower than the energy required to achieve final physical performance. Applying full cure between every station can add unnecessary heat and may reduce intercoat adhesion.
A more controlled approach assigns a purpose to each curing head. Selected stations may use low or moderate pinning energy. The final LED head then provides the energy required for full cure after the final ink, varnish, or coating layer. The sequence should match the ink stack and end-use requirements.
This method also supports stable high-speed operation. It reduces unnecessary thermal loading while preserving the printed structure needed for clean register and downstream converting. The final cure stage can then be sized around the highest-demand coating or ink layer.
Oxygen Inhibition Can Narrow the Process Window
Free-radical UV inks can experience oxygen inhibition at the exposed surface. Oxygen can interfere with surface polymerisation and cause tackiness, weak rub resistance, or poor scratch resistance. The effect becomes more visible when energy dose is low, ink films are thick, or the ink formulation is poorly matched to the LED source.
The first response should be to verify the physical process. Check LED output, wavelength, working distance, web speed, lamp-window condition, and ink laydown. A cured sample should be evaluated after a defined dwell period because some performance issues become clearer after the ink stabilizes.
If the process remains marginal, the ink chemistry and application should be reviewed. Some demanding applications may require a formulation designed for strong surface cure under LED exposure. Any change should be validated for adhesion, migration requirements, and compatibility with subsequent coatings.
A stable cure window should not depend on operating at the threshold of surface cure. The process needs a practical margin that accommodates normal production variation without producing tacky or weak areas.
Control Web Temperature Without Limiting Production Speed
High-speed production can create a conflict between cure demand and thermal limits. LED systems direct less infrared energy toward the web than many conventional UV sources, but absorbed optical energy and repeated exposure stages can still warm the substrate.
Film labels require particular care. Thin BOPP, PE, PP, PET, and shrinkable materials can respond to heat through curl, dimensional change, tension variation, or registration movement. The pressure-sensitive adhesive and release liner may also react differently from the facestock.
Web temperature should be measured under realistic press conditions. The trial should include the highest planned speed, dense print coverage, normal tension, active LED heads, and the actual cooling arrangement. A reading taken at low speed or on an unprinted web does not define a reliable process limit.
If the web approaches its approved temperature range, the solution may include better ink-wavelength matching, adjusted pinning energy, lower ink-film thickness, improved chill-roll performance, or a revised cure sequence. Raising lamp output without examining these factors can make the process less stable.
Registration Stability Should Be Checked During Cure Validation
Registration changes at high speed are not always caused by the print unit or servo system. A warmed web may change tension response or dimensional behaviour as it passes through the curing zone. This can create apparent registration movement after a lamp setting or coverage change.
Cure validation should therefore include registration measurements at low and high lamp output, as well as at normal production speed. The test should compare open artwork with dense coverage, because print coverage can influence the thermal condition of the web.
Web guides, nip settings, tension zones, idler-roll condition, and cooling-roll contact should be reviewed when registration shifts appear. The cure recipe should be considered part of the press setup, not an isolated downstream function.
A documented relationship between cure output and registration performance helps operators avoid unnecessary plate or sleeve adjustments. It also improves repeatability when jobs are rerun after a material change.
Build Recipes Around Measurable Production Conditions
A high-speed LED-UV flexo recipe should record more than lamp power. It should include lamp wavelength, irradiance setting, working distance, press speed range, substrate type, anilox specification, ink system, print sequence, cooling settings, and approved quality tests.
The recipe should identify any conditions that require a different setting. Opaque white may need a different final-cure level from process colours. A heavy varnish may require a separate recipe from a standard gloss coating. A thin film may need a different pinning sequence from a paper facestock.
The press control system can improve stability when it links LED output to web speed. The relationship should be validated rather than assumed. A linear output change may not create a linear cure response because exposure geometry, ink chemistry, and thermal conditions also affect the result.
Job recipes should be protected from unapproved changes. Operators need a clear method for recording adjustments and assessing their effect. This is especially important for regulated or low-migration label work, where cure conditions are part of the approved process.
Low-Migration Production Requires a Controlled Window
Low-migration label applications require compatible inks, coatings, adhesives, substrates, and cleaning practices. LED output is one part of that control system. A visually dry surface cannot establish that the complete printing process meets the required application standard.
The cure window should be documented for each approved material combination. Operators should not compensate for a defect by increasing press speed, changing anilox volume, or reducing LED output without reviewing the effect on cure and migration performance.
Press hygiene also matters. Ink residues, wash-up materials, contaminated rollers, and incorrect job changeover procedures can affect sensitive applications. Stable curing conditions help, but they do not replace material control and documented production practices.
Maintenance Protects Cure Consistency
LED heads require regular inspection even though they do not use conventional lamp bulbs. Protective windows can collect ink mist, coating splash, paper dust, and adhesive debris. This reduces delivered energy and may create uneven cure across the web.
Cooling systems also require attention. Air-cooled units need clean filters and reliable airflow. Water-cooled units need correct flow, suitable coolant condition, leak checks, and alarm verification. Reduced cooling performance can affect LED output and long-term component reliability.
Output should be measured at the web plane using a wavelength-appropriate instrument. Measurements should be taken across the usable print width and recorded by lamp head. Trending the results helps identify gradual loss of performance before it causes rejected work.
Troubleshooting High-Speed Cure Variation
If rub resistance, adhesion, or blocking fails only at high speed, begin with delivered dose at the actual running speed. Check lamp output, working distance, output uniformity, lamp-window cleanliness, and the programmed speed-to-power relationship. Then inspect ink-film thickness and wavelength compatibility.
If the problem occurs only in one colour, compare anilox volume, ink batch, pigment loading, plate coverage, and cure position with the other units. Opaque white and dense black often require separate validation from process colours.
If the defect appears near one web edge, inspect lamp alignment, cross-web output uniformity, web tracking, and local lamp-window contamination. If defects appear after a long run, investigate cooling performance, output drift, rising web temperature, and contamination buildup.
A structured diagnosis prevents unnecessary changes. It also keeps the press within a known cure window instead of creating a new variable with every production issue.
Conclusion
A stable cure window allows flexo UV LED curing systems to support high-speed label production with predictable ink performance and controlled process risk. The window is defined by more than lamp power. It depends on wavelength compatibility, dose at production speed, ink-film thickness, curing sequence, substrate response, and press handling.
The strongest process is validated at the highest-demand job conditions and recorded as a controlled recipe. By separating pinning from final cure, controlling anilox-driven ink laydown, measuring output at the web plane, and monitoring thermal and registration effects, label presses can maintain reliable cure while operating at commercial speed.
