Enhancing Adhesion on Film and Foil with Advanced UV Curing Systems
Introduction to UV Curing in Label and Flexographic Printing
In the competitive world of label printing, achieving high-quality adhesion on film and foil substrates remains a persistent challenge. Flexible packaging, often made from PET, PVC, or foil laminates, demands precise curing processes to ensure durability and print longevity. Traditional UV curing methods have been enhanced significantly with the development of advanced UV systems, including LED UV technology. This revolutionizes how printers improve adhesion, reduce energy consumption, and speed up production.
The Significance of Adhesion in Label and Narrow Web Printing
Effective adhesion is foundational for the performance of labels, especially in applications exposed to moisture, chemicals, or mechanical stress. Flexographic and letterpress printing on thin, flexible substrates require adhesion promoters and optimized curing processes to prevent peeling, cracking, or print failure. Narrow web printing, ranging from 150mm to 420mm, demands precise control over curing energy to balance print clarity with substrate compatibility.
The Role of UV Curing in Enhancing Adhesion
Ultraviolet curing technology involves using UV light to rapidly polymerize inks and coatings on various substrates. For film and foil labels, UV curing ensures that inks and adhesives form a strong bond with the surface, improving resistance and extending shelf life. Traditional mercury vapor lamps, while effective, emit broad-spectrum UV light that can lead to excess heat and energy waste. This is where advanced LED UV systems come into play, offering targeted, energy-efficient curing tailored to specific inks and substrates.

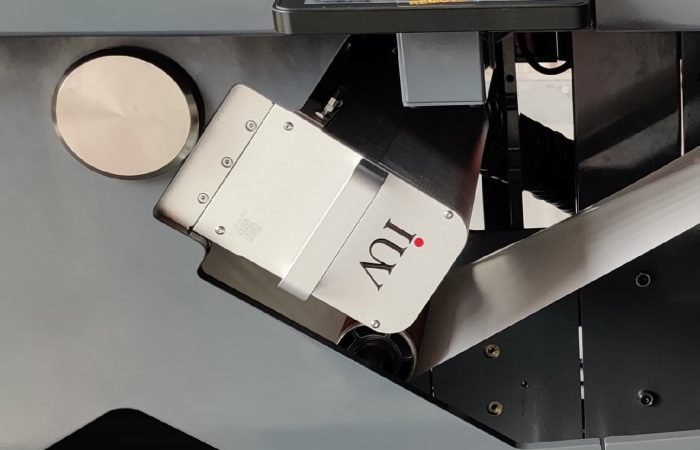

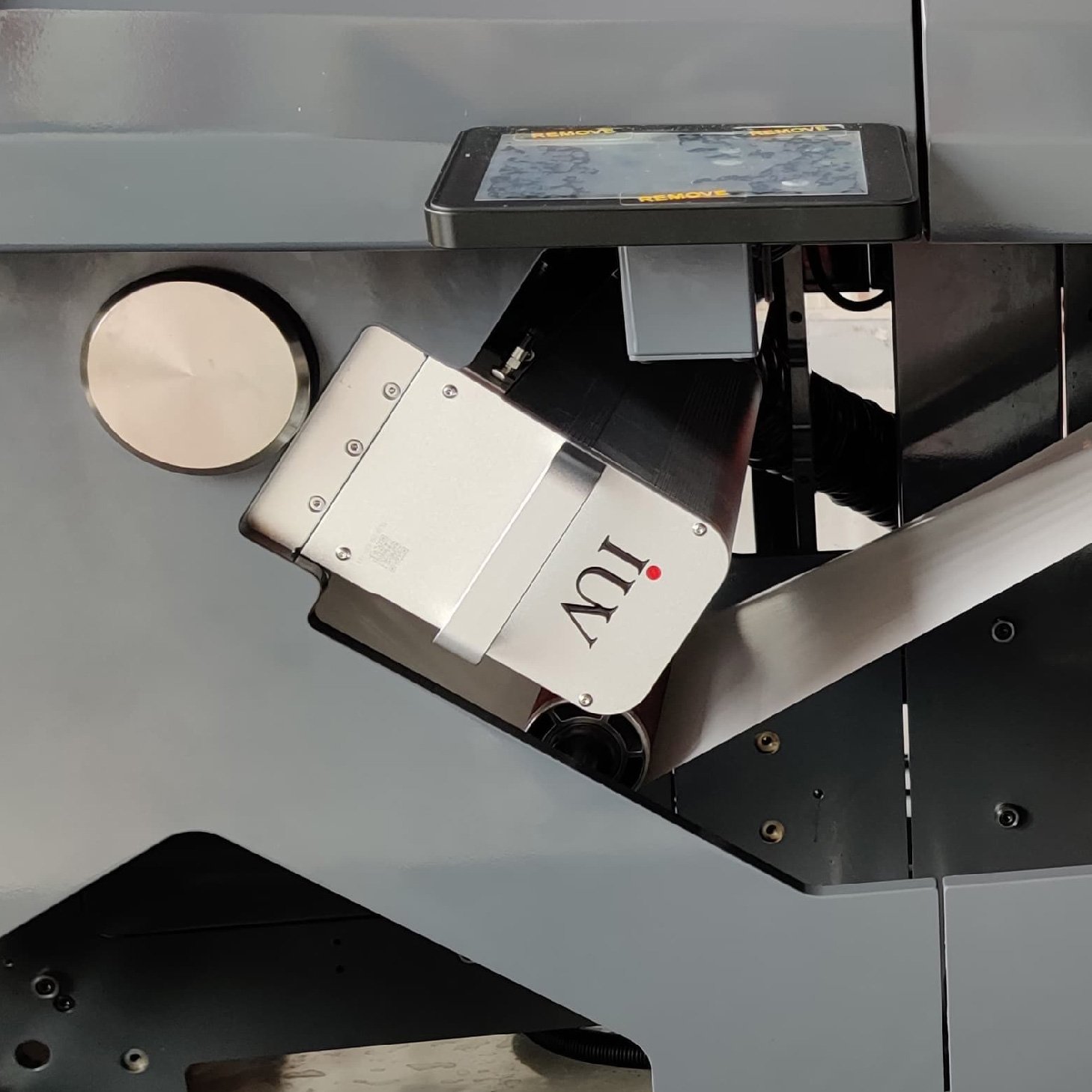

Advanced LED UV Systems and Their Benefits
LED UV systems offer a series of advantages for labels printed on film and foil substrates:
- Energy Efficiency: LED systems consume significantly less power than traditional lamps, reducing operational costs.
- Instant On/Off Capability: They reach full intensity instantly, minimizing startup time and enabling rapid production changes.
- Precise Curing: LED UV emit narrow spectral bands that can be tailored for specific inks and coatings, enhancing adhesion without over-curing.
- Low Heat Generation: Reduced heat minimizes substrate deformation, warping, or offset issues, vital for delicate films.
- Longer Lifespan: LED systems have a longer working life, decreasing maintenance requirements and downtime.
Optimizing Adhesion in Flexographic and Letterpress Printing
Flexographic presses widely utilize UV curing for on-the-fly production and high-quality output. To maximize adhesion:
- Select UV inks formulated for film or foil substrates, often containing adhesion promoters.
- Use primers or coatings designed to improve ink fixation on non-porous surfaces.
- Adopt LED UV curing units to ensure consistent, controlled energy delivery.
- Fine-tune curing parameters based on ink type, substrate thickness, and ambient conditions.
For letterpress printing, especially with specialty metallic foils or transparent films, the curing system’s ability to cure quickly and uniformly translates directly into superior adhesion and aesthetic quality.
Importance of Proper UV Curing Parameters
Achieving optimal adhesion depends on correctly configuring the UV curing process:
- Cure Dose: The total energy delivered must be sufficient to fully polymerize the ink without overexposing, which can cause brittleness.
- Line Speed: Higher speeds require more intense or longer exposure to ensure complete curing.
- Substrate Compatibility: Different films and foils have varying heat and energy sensitivities; some may require lower energy to prevent deformation.
- Ink Formulation: Some inks need more aggressive curing if they contain pigment or metallic particles.
A well-calibrated UV curing system ensures that adhesion is enhanced uniformly across the entire printed area, leading to improved product reliability.
Implementing UV Curing for Specialized Printing Techniques
In narrow web, label, and flexible packaging markets, applying UV curing intelligently supports advanced printing techniques such as:
- Spot UV Coatings: Specialized UV layers for glossiness and protection, requiring precise curing to avoid smudging.
- Embossing and Metallic Finishes: Metallic inks and holographic foils need controlled UV exposure to prevent adhesion failure.
- Transparent and Clear Films: Achieving adhesion on transparent substrates involves optimizing curing to minimize adhesion gaps.
The integration of LED UV systems simplifies these processes by providing instant, consistent curing and better control over curing parameters.
Innovations in UV Curing and Adhesion Enhancement
Recent innovations focus on multifunctional UV inks with improved adhesion properties and the development of tailored LED UV wavelengths. These advancements facilitate better bonding on difficult surfaces like polyester, PET, and metallized films. Moreover, smart curing systems monitor real-time feedback and dynamically adjust parameters, maintaining optimal adhesion even under fluctuating environmental conditions.
Conclusion
As label printers and flexible packaging producers seek to improve durability and aesthetics, advanced UV curing systems play an increasingly vital role. The shift towards LED UV technology offers solutions that enhance adhesion, reduce energy usage, and streamline processes. Implementing these cutting-edge systems equips printers to meet the rising demands for high-quality, compelling labels on film and foil substrates, ensuring their products stand out in a crowded marketplace.
