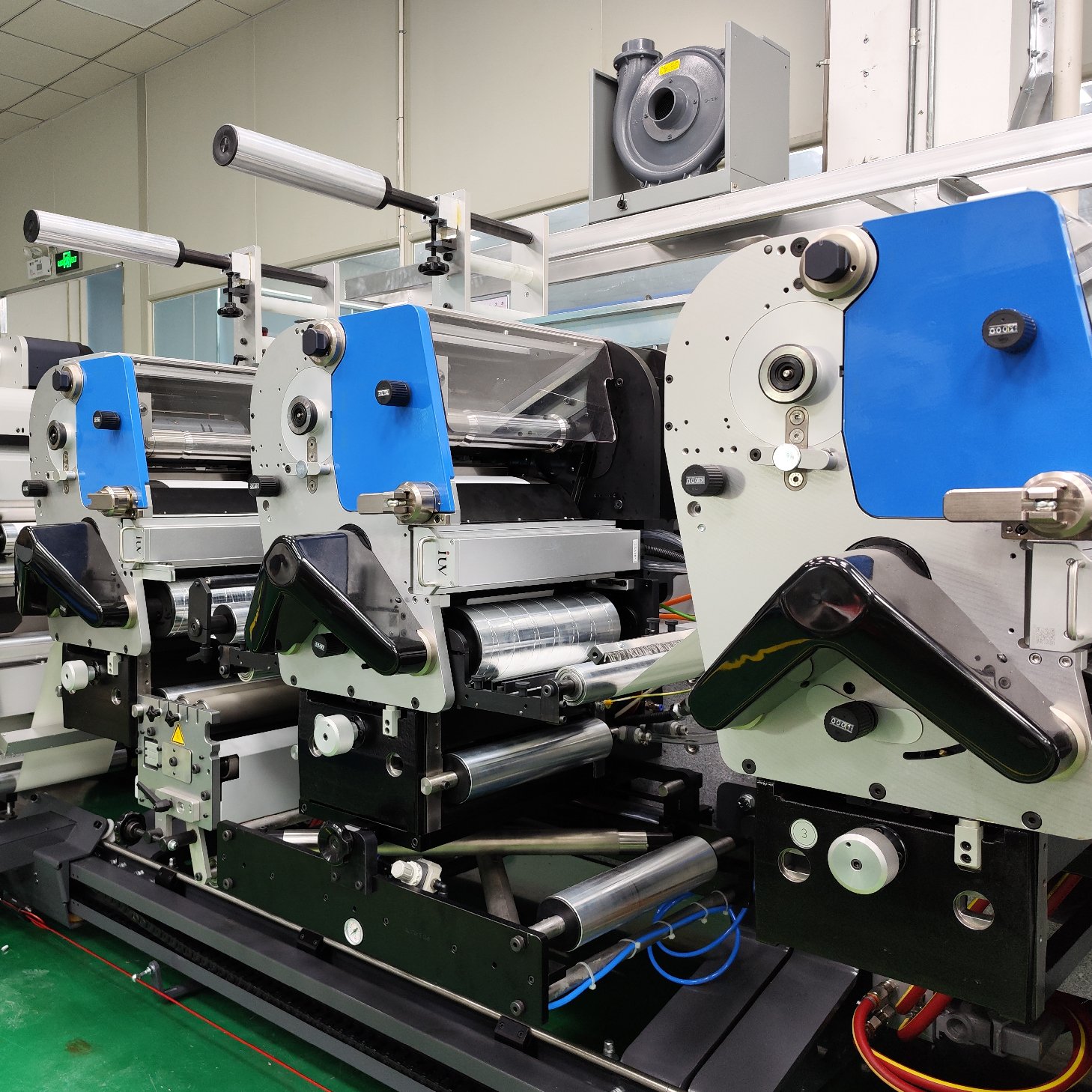

The Ultimate Guide to Troubleshooting UV Curing Issues in Flexo Printing

UV curing has revolutionized flexographic printing, offering faster drying times, enhanced durability, and improved print quality. However, like any advanced technology, it can present its share of challenges. For label printers, narrow-web operations, and any flexo setup, understanding and resolving UV curing issues is crucial for maintaining productivity and profitability. This guide dives deep into common problems and their solutions, drawing on expertise in UV technology, flexo processes, and LED curing.

Understanding the Fundamentals of UV Curing

Before troubleshooting, a solid grasp of UV curing is beneficial. UV curing is a photochemical process where ultraviolet light initiates a rapid polymerization reaction, transforming liquid ink, coating, or adhesive into a solid, cross-linked film. This process is driven by photoinitiators within the formulation, which absorb UV energy and generate free radicals or cations that start the chain reaction. Key factors influencing cure speed and completeness include UV intensity, exposure duration, ink/coating formulation, and substrate properties.

Common UV Curing Issues in Flexo Printing

Many factors can lead to incomplete curing, poor adhesion, surface defects, or other quality problems. Identifying the root cause is the first step to an effective solution.

1. Insufficient Cure / Undercure

This is perhaps the most frequent issue. An incompletely cured ink or coating might feel tacky, smudge easily, or exhibit poor scratch and chemical resistance.

Causes:

Low UV Lamp Intensity: The UV lamps may be aging, dirty, or operating at reduced power. For LED systems, this could be due to individual diode failure or inconsistent output across the array.
Incorrect Exposure Time: The press speed might be too high for the available UV exposure, or the UV unit is not positioned correctly relative to the print stations.
Formulation Problems: The ink or coating may not be properly formulated for the specific UV source or lamp intensity. Insufficient photoinitiator concentration is a common culprit.
Substrate Interference: Opaque or highly reflective substrates can bounce UV light away from the ink layer, hindering cure. Some substrates might also contain UV absorbers.
Ink/Coating Thickness: Applying too thick a layer of ink or coating can prevent UV light from penetrating to the bottom.
Oxygen Inhibition: In free-radical UV curing, oxygen from the air can interfere with the polymerization process, especially at the surface, leading to tackiness.

Solutions:

Measure UV Intensity: Use a radiometer to verify that the UV lamp output meets the manufacturer’s specifications. Clean lamp reflectors and bulbs regularly. Consider lamp replacement if they are nearing their lifespan.
Optimize Press Speed: Adjust the press speed to match the UV unit’s capabilities. Ensure proper registration of the UV unit with the printing stations.
Consult with Ink/Coating Supplier: Discuss the formulation and its compatibility with your specific UV system (mercury vapor or LED, wavelength, intensity). Ensure the correct amount of photoinitiator is present.
Test Substrates: If switching substrates, perform cure tests. For difficult substrates, consider adhesion promoters or specially formulated inks.
Control Ink/Coating Thickness: Use appropriate anilox roll volumes and doctor blade settings to control ink transfer.
Mitigate Oxygen Inhibition: For challenging applications, consider nitrogen inerting systems or UV formulations specifically designed to overcome oxygen inhibition.

2. Poor Adhesion

If UV-cured ink or coating flakes off, peels, or can be easily scratched, adhesion is compromised.

Causes:

Incomplete Cure: Undercured ink will inherently have poor adhesion.
Substrate Contamination: Release agents, oils, or dust on the substrate surface can prevent ink from bonding.
Surface Energy Issues: The substrate may have low surface energy, making it difficult for the ink to wet and adhere.
Wrong Ink/Coating Formulation: The ink or coating might not be designed for the specific substrate being used.
Poor Substrate Treatment: Insufficient surface treatment (e.g., corona, plasma) on low-surface-energy materials.

Solutions:

Ensure Full Cure: Address any undercure issues as described above.
Substrate Cleaning: Thoroughly clean the substrate before printing.
Surface Energy Testing and Treatment: Measure the substrate’s surface energy and ensure it’s adequate for the ink. Implement appropriate surface treatments if necessary.
Verify Formulation Compatibility: Work with your ink supplier to ensure the ink/coating is suitable for the substrate.
Optimize Treatment Levels: Calibrate corona or plasma treatment to achieve the correct surface energy without over-treating, which can sometimes degrade the surface.

3. Surface Defects (e.g., Orange Peel, Pinholing, Blooming)

These visual imperfections detract from the print quality and can indicate curing or formulation issues.

Causes:

Orange Peel: Often caused by surface tension differences between the ink and the substrate, or by improper rheology of the ink/coating. It can also be exacerbated by insufficient UV cure, as the surface tries to “relax” before fully hardening.
Pinholing: Small holes in the cured film can result from trapped air or solvents, or from surface irregularities on the substrate. Incomplete cure can sometimes lead to collapse of tiny air bubbles.
Blooming: A cloudy or hazy appearance, sometimes due to uncured components migrating to the surface, or to incompatibility between different layers (e.g., ink and overprint varnish).

Solutions:

Adjust Ink Rheology: Work with your ink supplier to fine-tune the ink’s viscosity and flow properties.
Optimize Anilox and Doctor Blade: Ensure proper ink transfer and doctoring to avoid excessive air entrapment.
Substrate Surface: Check for surface defects or unevenness on the substrate.
Full Cure: Confirm that the ink or coating is fully cured.
Compatibility Testing: If applying multiple layers (ink, varnish), ensure they are compatible. Perform compatibility tests.
Ventilation: Ensure adequate ventilation to remove any volatile organic compounds (VOCs) if present, though less common with modern UV systems.

4. Discoloration or Yellowing

Some UV-cured materials can yellow over time or when exposed to heat or light.

Causes:

Photoinitiator Degradation: Certain photoinitiators can degrade and form colored byproducts, especially upon prolonged UV exposure or heat.
Ink/Coating Formulation: Some pigments or resin systems are inherently more prone to yellowing.
Over-Curing (with specific lamps): Excessive exposure to certain UV wavelengths, particularly in mercury vapor lamps, can sometimes lead to degradation.

Solutions:

Photoinitiator Selection: Discuss with your ink supplier the use of non-yellowing photoinitiators or specific UV systems that minimize this risk. LED curing, with its narrow wavelength output, often offers better control.
Formulation Review: Choose ink and coating formulations known for their color stability.
Optimize Cure Levels: Avoid over-curing, especially with mercury lamps, by accurately controlling exposure time and intensity.

The Role of LED UV Curing

LED UV curing has become increasingly popular, especially in narrow-web and label printing. It offers distinct advantages but also requires a specific understanding.

Wavelength Specificity: LEDs emit UV light at very specific wavelengths (e.g., 365 nm, 395 nm). Formulations must be designed to absorb efficiently at these precise wavelengths. A mercury vapor ink may not cure well under an LED lamp, and vice versa.
Lower Heat Output: LEDs generate significantly less heat than traditional mercury vapor lamps. This is advantageous for heat-sensitive substrates but means the energy transfer is purely photochemical, not aided by thermal drying.
Instant On/Off: LEDs provide full intensity immediately and can be switched on and off instantly, leading to energy savings and reduced heat build-up when not actively curing.
Lower Intensity, Higher Efficiency: While individual LED diodes might have lower peak intensity than a mercury lamp, their efficiency in delivering UV energy at the target wavelength, combined with focused output, can lead to effective curing.

Troubleshooting LED Specifics:

Formulation Mismatch: The most critical issue with LEDs is ensuring the ink/coating formulation is designed for the specific LED wavelength and intensity.
Coverage and Uniformity: Ensure the LED array provides uniform coverage across the web width. Issues with diode alignment or lamp head design can lead to uneven curing.
Distance: Maintain the optimal distance between the LED head and the substrate as specified by the manufacturer.

Best Practices for Optimal UV Curing

Regular Maintenance: Clean UV lamps, reflectors, and lenses. Inspect for damage. Monitor lamp output with a radiometer.
Ink/Coating Management: Store inks and coatings properly. Ensure correct mixing and viscosity. Follow manufacturer recommendations for pot life.
Substrate Evaluation: Understand your substrate’s properties, including surface energy and UV absorption characteristics.
Formulation Collaboration: Maintain close communication with your ink and coating suppliers. They are your best resource for optimized formulations and troubleshooting advice.
Process Control: Monitor press speed, UV intensity, and bulb hours. Implement a system for tracking and analyzing cure test results.
Training: Ensure your press operators are well-trained on the specifics of UV curing and the equipment used.
