LED curing technology is revolutionizing the printing industry. This advanced method offers significant advantages over traditional UV curing. It dramatically impacts how inks are formulated and directly influences the durability of printed materials. For label printing, this means enhanced performance and new possibilities.
Understanding LED curing starts with its core technology. Unlike mercury vapor lamps, LED lamps emit a very specific wavelength of UV light. This focused emission is highly efficient. It targets the photoinitiators within the ink, causing rapid polymerization. This process hardens the ink film almost instantly.
The precise wavelength is key. Different photoinitiators react to specific UV ranges. Formulating inks for LED curing requires careful selection of these components. Printers must work closely with ink manufacturers. They need to ensure the ink chemistry is perfectly aligned with the LED lamp’s output. This collaboration is vital for achieving optimal cure.
This shift in curing technology prompts a re-evaluation of ink formulation. Traditional UV inks often contain a broader spectrum of photoinitiators. These are designed to work with the less targeted output of mercury lamps. LED-cured inks are optimized for narrow, intense wavelength bands. This leads to more efficient energy transfer.
Energy efficiency is a major benefit of LED curing. LED lamps consume less power than their predecessors. They also generate less heat. This is particularly advantageous for heat-sensitive substrates common in label printing. Materials like thin films and certain papers can be printed without warping or degradation.
The impact on ink formulation extends to performance characteristics. LED-cured inks often exhibit superior scratch resistance. They also show improved chemical resistance. This is due to the highly efficient and complete polymerization process. The ink film becomes exceptionally tough and well-bonded to the substrate.
For flexographic printing, the adoption of LED curing is transformative. Flexo inks, often water-based or solvent-based, can now be formulated for rapid UV LED cure. This allows for faster press speeds. It also opens doors for printing on a wider range of materials. Previously, the limitations of drying and curing hindered material choices.
Narrow web printing, prevalent in label and packaging, benefits immensely. Presses equipped with LED UV curing systems can run at higher speeds. This boosts productivity. The instant cure also prevents ink transfer between freshly printed webs. This eliminates the need for inter-station drying equipment in many cases.
Offset lithography also sees significant gains. LED UV inks for offset printing deliver excellent print quality. They provide sharp dot definition. The rapid cure minimizes ink spread. This is crucial for high-resolution graphics and fine text often found on labels.
Print durability is a critical factor for any printed product. Labels, in particular, endure demanding environments. They are exposed to abrasion, moisture, chemicals, and temperature fluctuations. LED-cured inks provide the robust performance needed to withstand these challenges.
The improved chemical resistance is a prime example. Many labels are exposed to solvents, oils, or cleaning agents. Inks that cure effectively under LED light form a barrier that resists these substances. This ensures the label’s message and aesthetic remain intact throughout its lifecycle.
Scratch resistance is equally important. Labels on consumer goods, industrial products, or automotive parts often undergo physical stress. LED-cured inks create a surface that is much harder to scratch or scuff. This maintains the visual appeal of the label.
When considering ink formulation for LED curing, several elements are key. Photoinitiator packages are designed for specific LED wavelengths, typically in the 365nm, 395nm, or 405nm ranges. Monomers and oligomers are selected for optimal reactivity and final film properties. Pigments are also chosen to minimize UV absorption, allowing the light to reach the photoinitiators efficiently.
The formulation process ensures that the ink cures completely, even in thicker ink films. This complete cure is essential for achieving the desired durability. Incomplete cure can lead to soft ink films that are prone to smudging and scratching.
The environmental benefits of LED curing are also noteworthy. The reduced energy consumption lowers a printer’s carbon footprint. Furthermore, LED lamps do not contain mercury, unlike traditional UV lamps. This simplifies disposal and reduces hazardous waste.
Many LED UV inks are also formulated with lower VOCs (Volatile Organic Compounds) or are entirely VOC-free. This contributes to a safer working environment and reduces emissions. The printing process becomes more sustainable overall.

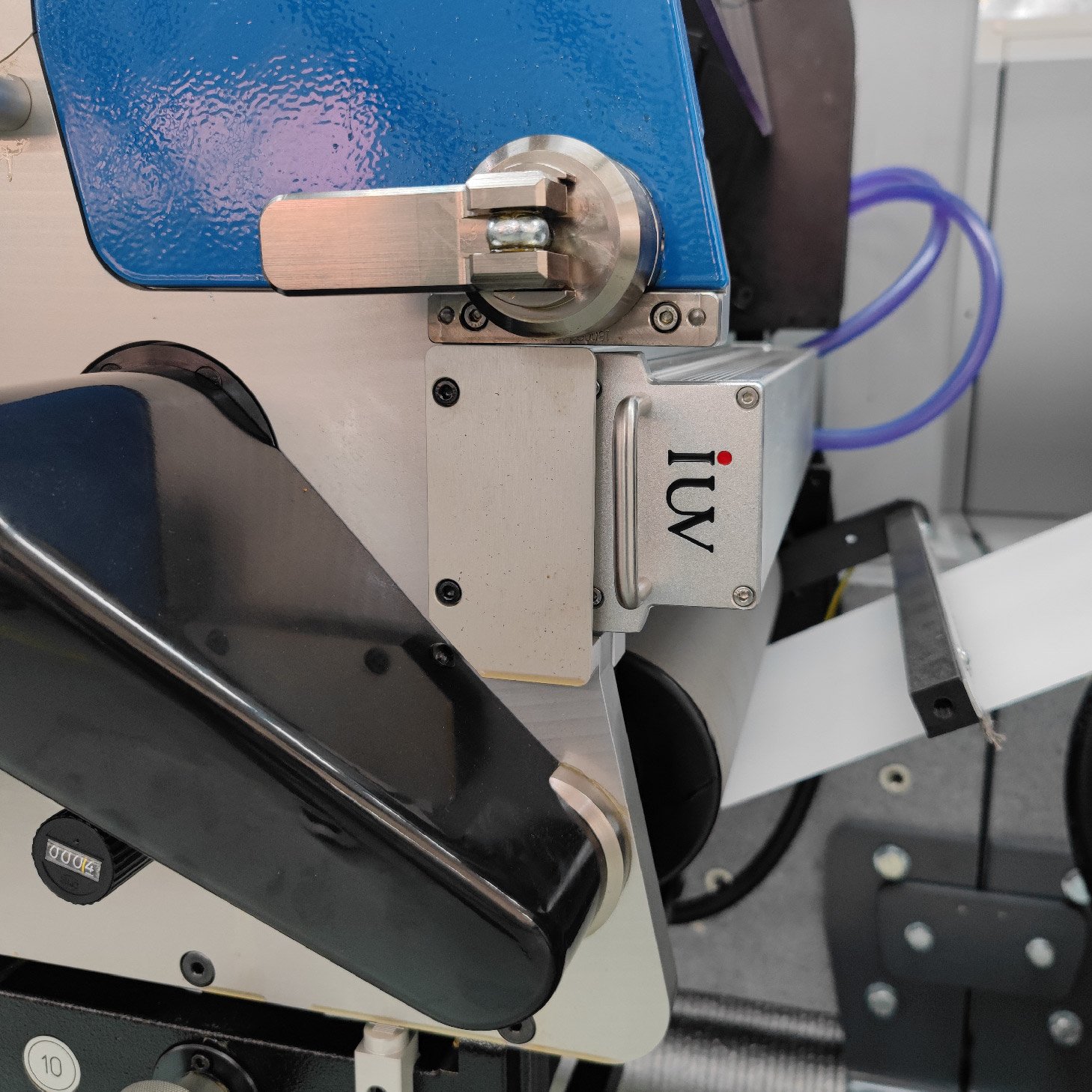

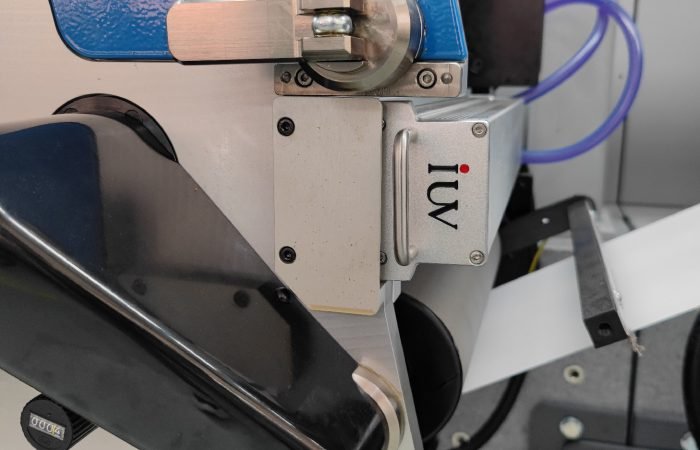

Printers adopting LED curing technology need to ensure their existing equipment is compatible. Press manufacturers offer retrofit solutions for integrating LED UV systems. Proper alignment and spacing of the LED heads are crucial for effective curing.
The investment in LED curing technology pays dividends. Increased press speeds lead to higher throughput. Reduced energy costs lower operating expenses. Enhanced print durability means fewer rejected jobs and greater customer satisfaction.
The future of label printing is undeniably linked to advancements in curing technology. LED UV curing represents a significant leap forward. It empowers printers to achieve superior results. It allows for greater efficiency. It enables the use of a wider array of substrates.
The impact on ink formulation is profound. It demands a scientific approach. It requires close partnership between ink suppliers and printers. The goal is always to create inks that perform optimally under LED light.
For flexo printing, this means sharper prints and faster production. For offset printing, it means consistent quality and reduced waste. For narrow web printing, it translates directly to increased profitability through higher speeds and less downtime.
The enhanced durability offered by LED-cured inks is a competitive advantage. It ensures labels look good and perform well, no matter the application. This reliability builds trust. It solidifies a printer’s reputation for quality.
The transition to LED curing is more than just a technological upgrade. It is a strategic move. It positions printing businesses for future success. It aligns with demands for sustainability and high performance. The careful formulation of inks is the cornerstone of unlocking this potential.
The ability to print on diverse materials, coupled with the robust nature of the final print, opens new market segments. Speciality labels, durable goods, and outdoor applications become more accessible. This is all thanks to the precise and efficient curing provided by LED technology.
It is a testament to innovation. It showcases how understanding fundamental chemistry and physics can transform an industry. The journey from ink formulation to the final durable print is now faster, cleaner, and more effective.
