In the modern narrow web and label printing environment, efficiency dictates profitability. Moving from traditional mercury arc lamps to LED UV curing systems marks a significant shift in how converters handle inline lamination. This transition offers faster press speeds, lower energy consumption, and reduced heat impact on sensitive substrates. Whether you operate a flexographic press or a specialized offset line, setting up LED UV curing for inline lamination requires precision and technical understanding.
This guide outlines the technical requirements and procedural steps to integrate LED UV curing into your lamination workflow effectively.
Understanding the LED UV Advantage in Lamination
Traditional UV curing relies on a broad spectrum of light, which generates significant infrared heat. This heat often causes thin films to stretch or shrink, leading to registration issues in label production. LED UV curing operates at a specific wavelength—usually 385nm or 395nm. This monochromatic output provides high-intensity energy without the thermal load.
For inline lamination, this means you can run thinner, more sustainable films. You also eliminate the “cool down” period required by mercury lamps. The instant on/off capability of LED units reduces downtime during job changes.
Step 1: Evaluating Substrate and Laminate Compatibility
Before adjusting any hardware, you must ensure your materials match the LED curing process. Not all lamination films are created equal.
Film Transparency
The laminate film must be transparent to the specific wavelength of your LED lamp. If you use a 395nm lamp, the film must allow that light to pass through to reach the adhesive layer. Some UV-stabilized films block these wavelengths, which prevents the adhesive from curing. Always request a spectral transmission curve from your film supplier.
Substrate Tension
In narrow web printing, maintaining consistent web tension is vital. When adding a lamination station, the extra pull can distort the base material. Ensure your press tension control system can handle the added weight and drag of the laminate roll.
Step 2: Selecting the Correct UV-Curable Adhesive
Inline lamination requires a specialized UV-curable adhesive designed for LED wavelengths. These adhesives contain photoinitiators that react specifically to the 365nm to 395nm range.
Viscosity and Application
In flexographic printing, the adhesive is typically applied via an anilox roller. The cell volume of the anilox determines the adhesive weight. For label printing, a smooth, thin layer is necessary to prevent “silvering”—the appearance of tiny air bubbles trapped under the film.
Chemistry and Cross-linking
LED-curable adhesives must have a high reactivity rate. Because the LED lamp provides a concentrated “peak” of energy rather than a broad spectrum, the chemical formulation must allow for rapid cross-linking. This ensures a strong bond immediately after the web passes under the lamp.
Step 3: Positioning the LED Lamp and Nip Rollers
The physical layout of your lamination station determines the success of the bond. In an inline setup, the lamination film meets the printed substrate at a “nip.”
The Nip Point
The nip consists of a steel roller and a rubber-covered pressure roller. This is where the laminate is pressed into the adhesive. The pressure must be uniform across the web width to prevent wrinkles.

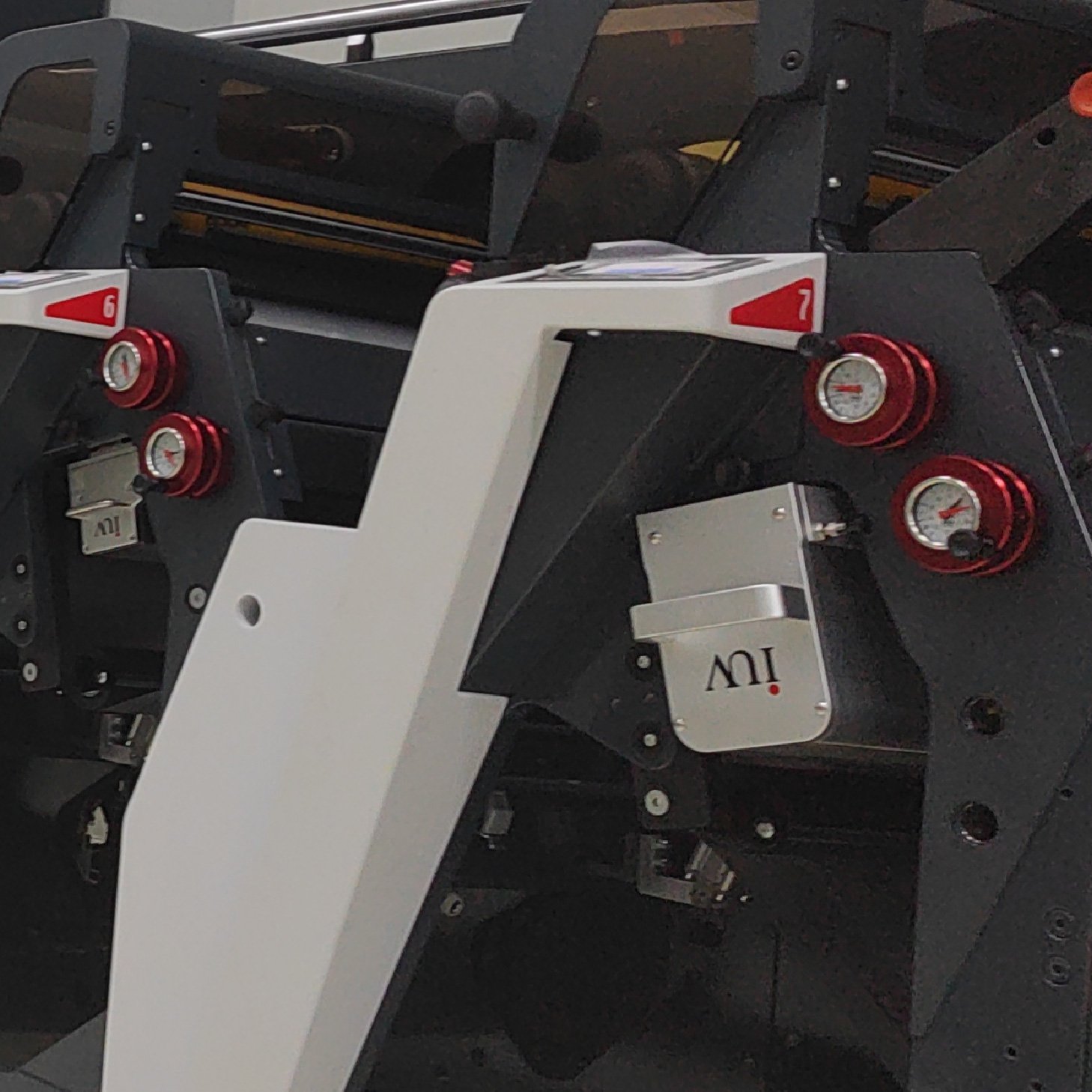

Lamp Placement
Place the LED lamp immediately after the nip point. The distance between the lamp head and the substrate—known as the “stand-off distance”—is critical. Usually, a distance of 10mm to 20mm is ideal for maximum peak irradiance. If the lamp is too far away, the energy drops off significantly, leading to uncured adhesive and delamination.
Step 4: Configuring Lamp Intensity and Web Speed
One of the greatest benefits of LED UV curing is the ability to synchronize lamp output with press speed.
Peak Irradiance vs. Dose
- Peak Irradiance is the intensity of light at the surface. It is measured in W/cm². High peak irradiance is necessary to “kickstart” the polymerization of the adhesive.
- Dose (Energy Density) is the total energy the adhesive receives as it passes under the lamp. It is measured in mJ/cm².
As you increase your flexo or offset press speed, you must increase the power output of the LED lamp to maintain a consistent dose. Most modern LED controllers feature “speed following” technology, which automatically adjusts the wattage based on the press tachometer.
Step 5: Thermal Management and Cooling
While LED lamps do not emit infrared heat like mercury lamps, the LED chips themselves generate heat internally. This heat must be managed to ensure lamp longevity and output stability.
Water-Cooled vs. Air-Cooled Systems
Most high-speed narrow web applications require water-cooled LED systems. Water cooling allows for a more compact lamp design and more consistent temperature control. Ensure your chiller is set to the manufacturer’s recommended temperature—usually around 20°C to 25°C. If the chiller is too cold, condensation may form on the lamp head, damaging the electronics.
Step 6: Testing the Cure Quality
You cannot rely on a visual inspection alone to determine if the lamination is cured. You must perform standardized tests.
The Tape Test
Apply a piece of high-tack adhesive tape to the edge of the laminate and pull it back sharply. If the laminate separates from the substrate, the cure is insufficient.
The “Squeeze” Test
Apply pressure to the laminated area. If the adhesive is still liquid or “moves” under the film, you need to either increase the LED power or slow down the press.
Dyne Level Check
For offset printing on non-porous labels, check the surface energy (dyne level) of the substrate. If the dyne level is too low, the adhesive will not wet out properly, leading to poor adhesion regardless of how well the UV lamp performs.
Step 7: Optimizing for Different Printing Processes
The setup for inline lamination varies slightly depending on your printing method.
Flexographic Printing
In flexo, the adhesive is applied using a dedicated print station. It is crucial to use a doctor blade system to ensure the adhesive volume remains consistent throughout the run. Any variation in adhesive thickness will change the required UV dose.
Offset Printing
In narrow web offset, the lamination unit is often positioned after the final color station or a varnish coating unit. Because offset inks are thinner, the adhesive must be compatible with the ink chemistry to prevent “bleeding” or image blurring under the laminate.
Maintenance and Safety Protocols
LED UV systems require less maintenance than mercury systems, but they are not maintenance-free.
- Window Cleaning: The quartz window protecting the LEDs must stay clean. Dust, ink mist, or adhesive overspray will block UV light and reduce curing efficiency. Clean the window daily using isopropyl alcohol and a lint-free cloth.
- Shielding: Even though LED UV doesn’t produce ozone, the light is extremely intense. Ensure that the lamination station is properly shielded to prevent operator exposure to reflected UV light.
- Cable Inspection: Check the power and coolant lines for any signs of wear or kinks. In narrow web presses, these cables often move or vibrate during operation.
Troubleshooting Common Issues
Silvering or Bubbles
This is usually caused by insufficient nip pressure or an uneven adhesive coating. Check the anilox roll for clogging and ensure the rubber nip roller is not pitted or worn.
Delamination after 24 Hours
Sometimes a bond looks good at the press but fails later. This is often “dark curing” or post-cure shrinkage issues. Ensure your LED lamp provides enough initial energy to achieve at least 90% conversion of the adhesive at the press.
Substrate Warping
Even with LED, some heat is transferred to the web. If you notice warping, check the chiller settings or increase the web speed to reduce the “dwell time” under the lamp.
Conclusion
Setting up LED UV curing for inline lamination is a technical process that rewards attention to detail. By aligning your adhesive chemistry with the correct LED wavelength and maintaining precise control over web tension and lamp intensity, you can achieve superior results. This setup not only improves the durability and appearance of your labels but also significantly lowers your operational costs through energy savings and reduced waste.
In the competitive landscape of narrow web printing, mastering the LED UV lamination process is a vital step toward a more efficient and sustainable production floor.
