The world of label printing is a fascinating dance between vibrant colors, intricate designs, and the need for durability. For narrow-web printers, especially those focused on multicolor label production, achieving that perfect balance between visual appeal and robust performance is paramount. This is where the power of LED UV curing systems truly shines.
The Challenge of Multicolor Printing
Printing multiple colors on a single label, particularly in narrow-web applications, presents unique challenges. Each ink layer needs to be applied precisely, and more importantly, each layer must be properly cured before the next color is printed. Traditional curing methods, like mercury vapor lamps, can generate significant heat, which can be detrimental to the substrate and the inks themselves, especially in high-speed printing environments. This heat can also lead to issues like ink transfer problems or premature drying, impacting the final print quality.
Furthermore, the layered nature of multicolor printing demands inks that cure quickly and completely. Incomplete curing can result in tacky surfaces, poor rub resistance, and a diminished ability to withstand environmental factors. For flexographic and offset printing processes commonly used in narrow-web label production, the speed and efficiency of the curing process directly influence throughput and profitability.
Enter LED UV Curing Technology
LED UV curing systems offer a compelling solution to these challenges. Unlike mercury lamps, LEDs emit UV light within a very specific wavelength range, typically 365nm, 395nm, or 405nm. This targeted emission means that only the wavelengths necessary for ink polymerization are delivered, leading to several key advantages.
One of the most significant benefits is the drastically reduced heat output. This “cool cure” capability protects heat-sensitive substrates, such as certain plastics and films, preventing them from warping or deforming. It also minimizes the risk of premature drying of inks on the printing plates or in the ink fountains, which is crucial for maintaining consistent print quality across long runs.
Achieving Perfect Ink Curing with LEDs
The efficiency of LED UV curing is another critical factor. LEDs reach their full curing power almost instantaneously upon activation. This allows for rapid curing of each ink layer as it is applied, enabling printers to achieve faster production speeds without compromising on ink adhesion or durability. For multicolor labels, this means each successive color layer can be reliably cured before the next is printed, ensuring a clean and vibrant final product.
The precise wavelength control also plays a role in achieving optimal cure. Different UV-curable inks are formulated to cure at specific wavelengths. By selecting an LED system that matches the ink’s requirements, printers can ensure complete cross-linking of the ink’s photoinitiators. This leads to inks with superior hardness, chemical resistance, and scratch resistance – qualities essential for high-performance labels found on everything from food packaging to industrial goods.
Tailoring LED Systems for Narrow-Web Printing

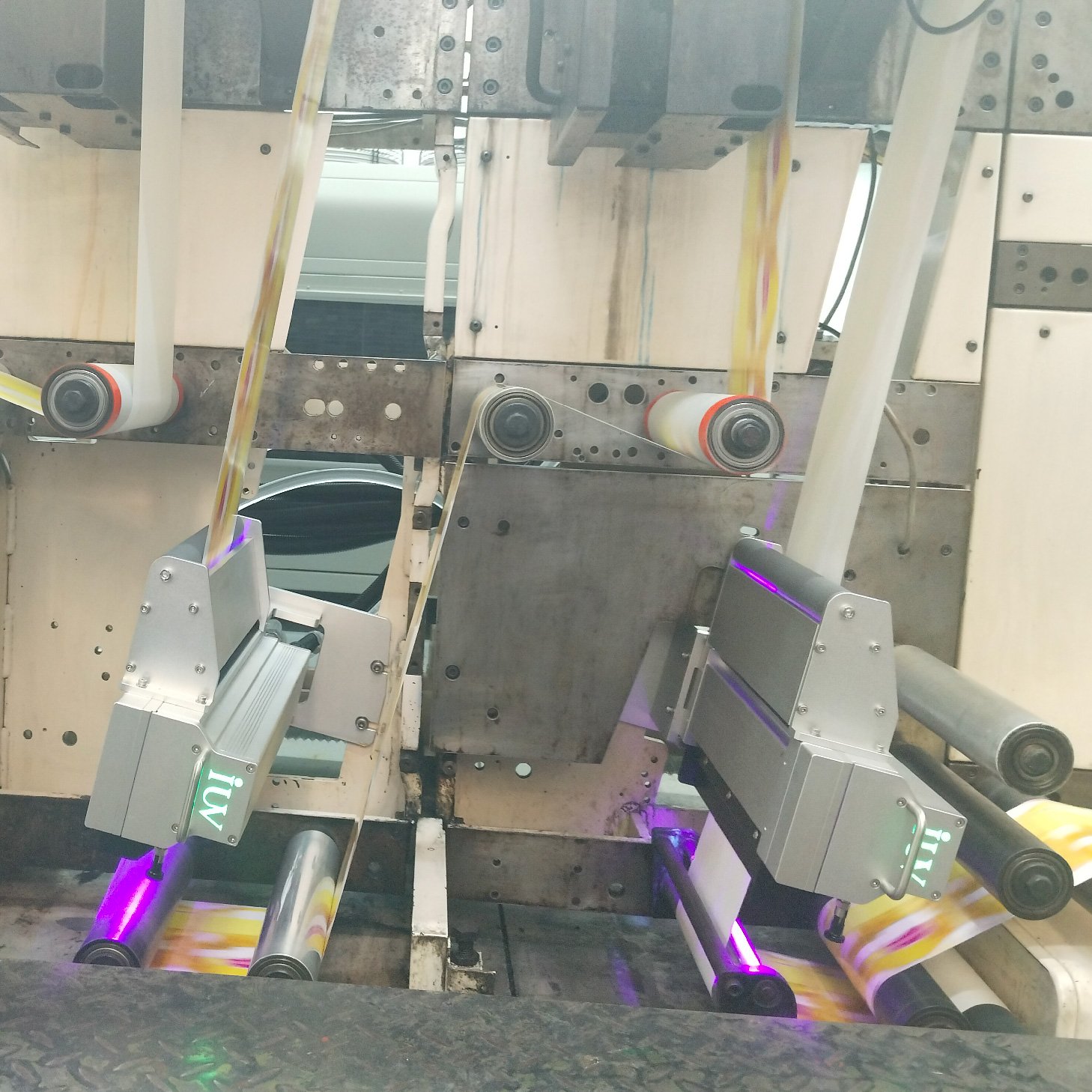

When integrating LED UV curing into narrow-web printing presses, several aspects require careful consideration. The compact nature of LED lamps makes them ideal for fitting into tight spaces on a printing machine. They can be placed between printing stations or at the end of the press, depending on the desired curing strategy.
For multicolor printing, placing an LED curing unit after each color station is a common and effective approach. This ensures that each ink layer is fully cured before the next color is applied. This “pinning” or “interdeck curing” not only enhances the quality of individual color layers but also prevents ink trapping issues, where wet ink from one layer can mix with the next, leading to muddy colors.
The energy efficiency of LED systems is also a major economic driver. They consume significantly less power than traditional mercury lamps and have a much longer operational lifespan, often lasting tens of thousands of hours. This translates to reduced energy costs and lower maintenance expenses over time. Furthermore, LEDs contain no mercury, making them an environmentally friendlier option.
Flexographic and Offset Printing Applications
In flexographic narrow-web printing, where flexible plates transfer ink to the substrate, rapid and thorough curing is essential. LED UV systems allow flexo printers to achieve high print speeds with excellent ink laydown and sharp dot reproduction, even with complex spot colors or varnishes. The cool curing also benefits the rubber or photopolymer plates, extending their life.
For offset narrow-web printing, especially sheet-fed or web-offset presses adapted for labels, LED UV offers similar advantages. It enables faster turnaround times and allows for the use of a wider range of substrates. The consistent curing performance ensures that the vibrant colors and detailed graphics demanded in label applications are reproduced flawlessly.
Optimizing for the “Perfect Balance”
Achieving that “perfect balance” in multicolor label printing with LED UV curing involves a holistic approach. It starts with selecting the right UV-curable inks that are formulated for LED curing and are compatible with the chosen printing process (flexo or offset). Equally important is choosing an LED UV system with the correct wavelength and power output for the specific inks and substrates being used.
Proper positioning of the LED curing units is also key. Whether it’s for interdeck curing or final curing, ensuring adequate exposure time and intensity at each stage is vital. Factors such as the distance between the LED lamps and the substrate, the conveyor speed, and the overall UV irradiance must be carefully managed.
Printers looking to implement or optimize their LED UV curing for multicolor labels should also consider the benefits of variable power control. This allows for fine-tuning the UV output based on the specific job requirements, optimizing energy consumption and preventing over-curing or under-curing.
The Future of Multicolor Label Printing is Bright and Cured
The integration of LED UV curing systems has revolutionized narrow-web multicolor label printing. By offering precise wavelength control, minimal heat generation, instant on/off capabilities, and superior energy efficiency, LEDs provide a robust and reliable solution for achieving high-quality, durable labels. For printers striving for that perfect balance of vibrant color, intricate detail, and lasting performance, LED UV curing is no longer just an option; it’s an indispensable technology. As ink and LED technologies continue to advance, we can expect even greater capabilities and efficiency in the production of visually stunning and functionally superior labels.
