Creating micro-text and intricate security features on printed materials presents a unique set of challenges for any printer. We’re talking about details so small they might be invisible to the naked eye, yet they need to be sharp, clear, and durable. Think about the fine print on a banknote, the serial numbers on pharmaceuticals, or the incredibly small logos used for brand protection. These elements require extremely precise ink laydown and instantaneous, complete curing.
Traditional curing methods often struggle to keep up. With older UV lamp technologies, there’s a risk of heat buildup, which can distort delicate substrates or cause inks to bleed, blurring those critical tiny details. Furthermore, achieving consistent and thorough curing across the entire printed area, especially with high-speed printing processes, can be difficult. Inconsistent curing means that some of those micro-details might not be fully hardened, compromising their integrity and security.
Enter LED UV Curing: A Paradigm Shift
This is where LED UV curing systems truly shine. Unlike traditional mercury vapor lamps, LED UV technology offers a highly focused and controllable light spectrum. This means we can target specific wavelengths that are optimized for different UV-curable inks. The result is a more efficient and effective curing process, even for the most demanding applications like micro-text and security printing.
One of the primary advantages of LED UV is its instant on/off capability and precise intensity control. This allows printers to apply a thin, uniform layer of ink and cure it immediately, preventing any spread or distortion. For micro-text, this is absolutely crucial. Each character, no matter how small, needs to be perfectly formed and locked in place without any ink migration.
Precision in Narrow Web and Flexographic Printing

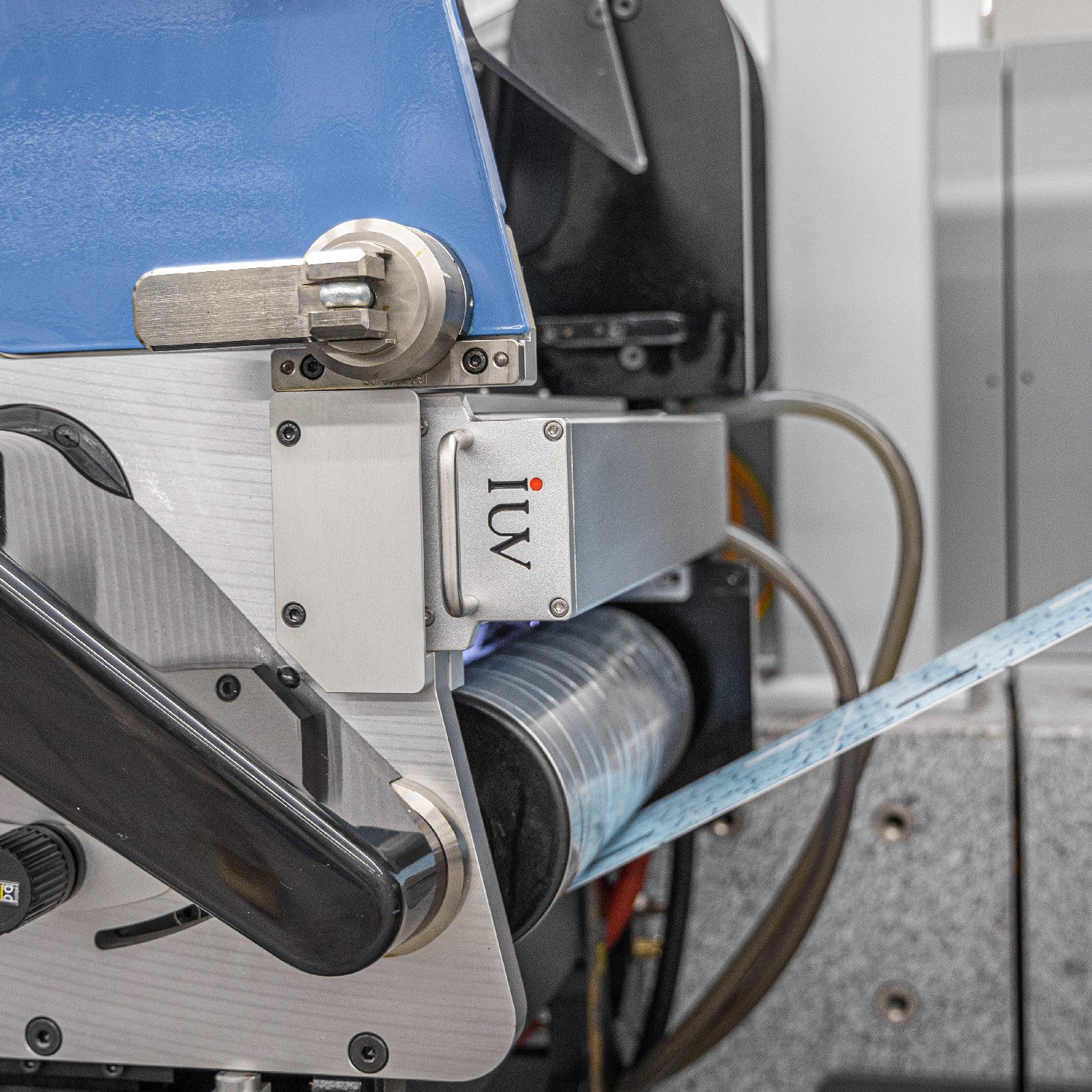

The narrow web printing sector, heavily reliant on flexography, is a prime beneficiary of LED UV curing for these applications. Narrow web presses are designed for high-speed, high-volume production of labels, packaging, and specialized applications. Integrating LED UV curing into these workflows means that delicate security inks and micro-text can be printed with the same speed and efficiency as standard graphics.
Flexographic printing, with its inherent ability to handle a wide range of substrates from films to papers, demands a curing solution that is gentle yet powerful. LED UV systems deliver this. They generate significantly less heat than traditional lamps, making them ideal for heat-sensitive materials often used in security printing. This is vital because even a slight deformation can render a security feature compromised. The focused UV output ensures that the ink cures from the surface down to the substrate, achieving a complete and robust finish.
Offset Printing: Enhanced Capabilities
In the realm of offset printing, particularly for labels and specialized commercial work, LED UV curing opens up new possibilities for high-resolution micro-text. Offset presses can achieve exceptional dot fidelity, and when combined with LED UV, the curing process ensures that these fine dots are perfectly hardened. This translates to incredibly crisp and legible micro-text, even when printed at very small point sizes.
The ability to cure instantly also means that downstream processes, such as varnishing or lamination, can be performed immediately. This streamlines production, reduces the risk of smudging delicate security elements, and increases overall throughput. For printers looking to offer high-value, secure printed products, the integration of LED UV into their offset workflows is becoming increasingly important.
The Science Behind the Cure: Ink and Wavelengths
The effectiveness of LED UV curing hinges on the compatibility between the ink formulation and the specific wavelengths emitted by the LEDs. UV-curable inks contain photoinitiators, which are compounds that absorb UV light and initiate a chemical reaction. This reaction causes the ink to polymerize and harden.
Different LED configurations emit different ranges of UV wavelengths (e.g., UVA, UVB). Formulators of security inks and micro-text inks carefully select photoinitiators that are highly responsive to these specific wavelengths. This ensures that the ink cures rapidly and thoroughly, achieving the desired hardness, chemical resistance, and durability required for security applications. The focused nature of LED UV means less wasted energy and a more targeted curing effect, leading to superior results for fine details.
Benefits for Security Printing: Beyond Clarity
The advantages of LED UV curing extend far beyond just achieving sharp micro-text. In the realm of security printing, durability and resistance to tampering are paramount. Properly cured UV inks exhibit excellent resistance to abrasion, chemicals, and fading. This makes the printed security features more robust and harder to counterfeit.
Consider the environmental benefits as well. LED UV systems are more energy-efficient than traditional UV lamps, consuming less power. They also have a much longer lifespan, reducing waste and maintenance costs. Furthermore, the absence of ozone generation, a byproduct of mercury lamps, contributes to a safer working environment.
Overcoming Hurdles and Embracing the Future
While the benefits are clear, adopting LED UV curing systems does require careful consideration. It’s not simply a matter of swapping out old lamps for new LEDs. Ink formulations may need to be adjusted or new inks chosen to optimize performance with the specific LED wavelengths. Printers also need to understand the spectral output of their chosen LED system and how it interacts with their inks.
However, the investment in understanding and implementing LED UV technology for high-resolution micro-text and security printing yields significant returns. It allows for the production of incredibly detailed and secure printed products, meeting the stringent demands of industries from finance and pharmaceuticals to government and luxury goods. The precision, speed, and efficiency offered by LED UV are transforming what’s possible in the world of specialized printing.
