In the narrow web printing industry, achieving a perfect bond between ink and substrate remains a constant challenge. When working with non-porous materials such as polyethylene (PE), polypropylene (PP), and metallic foils, the stakes are higher. Unlike paper, these substrates do not absorb ink. The entire bond depends on surface interaction and the efficiency of the UV curing process. Understanding how UV radiation transforms liquid ink into a solid, adhered film is the foundation of high-quality label production.
The Science of Surface Energy and Adhesion
Adhesion begins with surface energy. Non-porous substrates typically have low surface energy, making it difficult for liquid inks to wet out and spread evenly. If the surface energy of the substrate is lower than the surface tension of the ink, the ink will bead up, resulting in poor coverage and weak adhesion.
Corona treatment is the most common solution. Corona discharge increases surface energy by oxidizing the surface layer of the plastic. In flexographic and offset printing, the target Dyne level is typically 7–10 dynes higher than the ink’s surface tension. However, surface treatment alone is not enough—UV curing relies on this initial wetting to create a permanent chemical and mechanical bond.
The UV Curing Mechanism: From Liquid to Solid
UV curing is a photochemical reaction. When UV radiation strikes the ink film, photoinitiators absorb energy and generate free radicals. These radicals initiate polymerization, linking monomers and oligomers into a cross-linked polymer network.
On non-porous substrates, this transition must occur almost instantly. Narrow web presses often operate above 150 meters per minute. If curing is too slow, the ink film can shrink excessively. This shrinkage stress pulls the ink away from the substrate, weakening adhesion. Modern UV ink formulations are engineered to minimize shrinkage stress while maintaining high cross-link density.
Factors Affecting Adhesion in Narrow Web Flexo
Flexographic printing dominates the label market and relies on low-viscosity inks that must cure rapidly. Several variables determine adhesion success.
1. Ink Film Thickness
The anilox roll controls ink volume. If the ink film is too thick, UV light may not penetrate to the bottom of the layer. This creates a fully cured surface with an uncured base. The result is poor rub resistance and tape-test failure—especially common with opaque whites and dense blacks.
2. Oxygen Inhibition
Oxygen reacts with free radicals at the ink surface, interrupting polymerization and leaving a tacky finish. While it appears to be a surface issue, it weakens the entire ink film. High-performance applications often rely on LED UV systems or nitrogen inerting to eliminate oxygen inhibition.
3. Lamp Intensity vs. UV Dose
Intensity (irradiance) and dose (energy density) are not the same. Intensity initiates the reaction; dose completes it. As press speed increases, UV dose decreases. Operators must compensate by increasing lamp output to maintain adhesion on non-porous substrates.

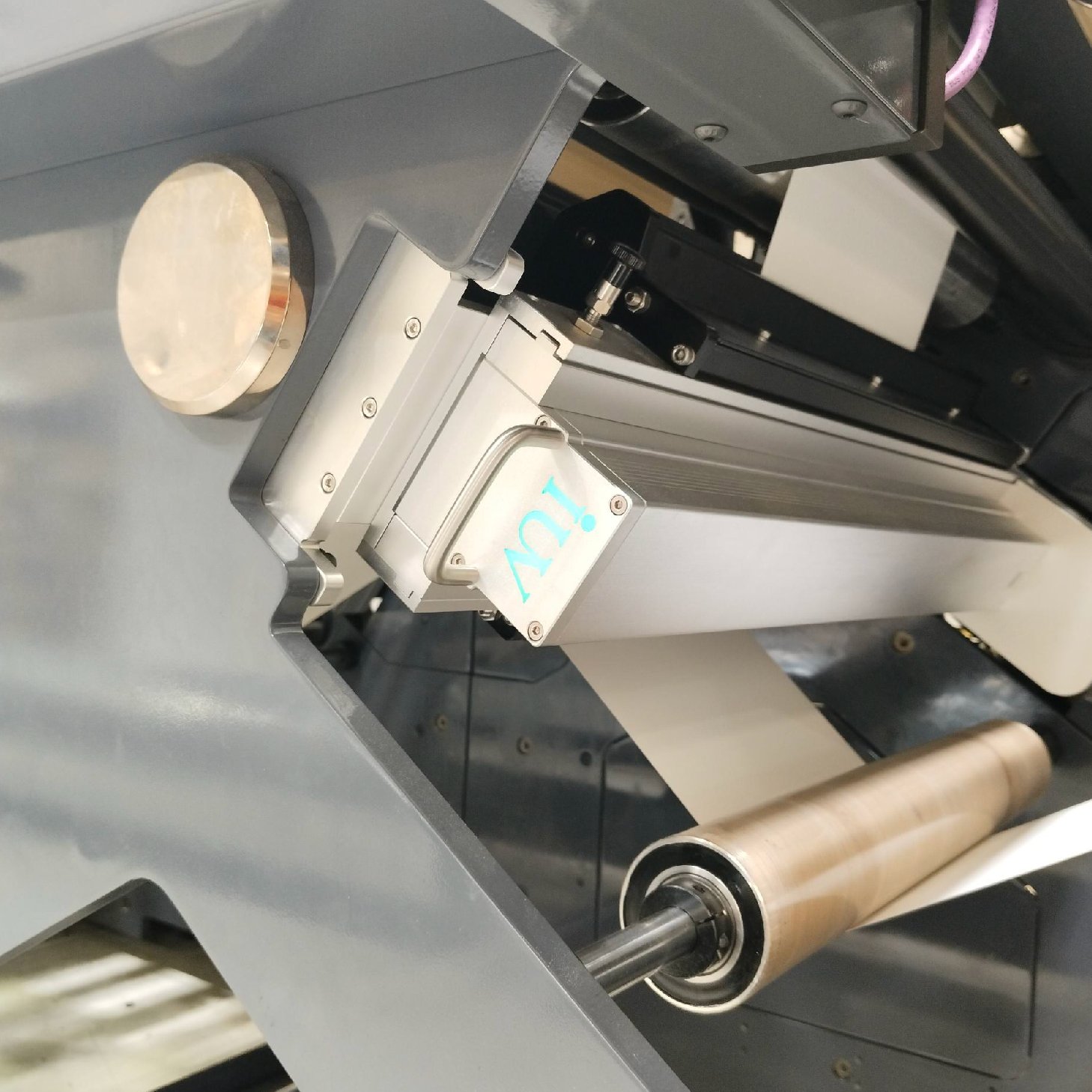

UV LED vs. Conventional Mercury Curing
The transition from mercury vapor lamps to UV LED technology has reshaped adhesion performance.
Mercury lamps emit a broad UV spectrum (UVC, UVB, UVA), which promotes strong surface curing but generates significant heat. Excess heat can distort thin films such as BOPP or shrink sleeves, altering surface tension and causing adhesion failure.
UV LED systems typically operate at 365 nm or 395 nm, producing a narrow spectrum with minimal heat. This makes them ideal for heat-sensitive materials. In addition, LED UV light penetrates deeper into thicker ink films—a major advantage for UV offset printing and high-pigment flexo inks. Deeper penetration improves bonding at the ink–substrate interface and reduces delamination risk.
Substrate-Specific Adhesion Considerations
Each non-porous substrate presents unique challenges.
Polypropylene (PP) and BOPP
Common in clear labels, these materials require precise corona treatment. Over-treatment can create a weak boundary layer, where ink bonds to unstable surface molecules instead of the base polymer.
Polyethylene (PE)
PE is soft and flexible. UV inks used on PE must remain flexible after curing. Over-cross-linked or brittle inks may crack or flake when the label is flexed or squeezed.
Metallic Foils
Foils reflect UV light, which can assist bottom-layer curing. However, foils are completely non-absorbent, meaning adhesion relies entirely on chemical bonding between the ink resin and the metal surface.
The Role of UV Offset Printing
While flexo dominates narrow web printing, UV offset is used for premium labels requiring high resolution. Offset inks are more viscous and applied in thinner films, so UV penetration is rarely a concern.
However, water–ink balance is critical. Excess fountain solution emulsified into the ink can slow polymerization, resulting in poor adhesion on synthetic substrates.
Troubleshooting Adhesion Failures
When labels fail adhesion tests, engineers should evaluate the entire process:
Check Dyne Level: Confirm surface energy with Dyne pens
Verify Lamp Output: Measure UV energy using a radiometer
Inspect Reflectors: Dirty or warped reflectors reduce intensity
Review Ink Age and Storage: Photoinitiators degrade over time
Adjust Press Speed: Slow the press to confirm curing limitations
Testing Standards for Labels
The ASTM D3359 cross-hatch tape test is the industry standard. A grid is cut into the ink film, tape is applied, and adhesion is evaluated after removal.
For cosmetic and chemical labels, product resistance testing is equally critical. UV-cured inks must form a fully cross-linked barrier to resist chemicals, oils, and solvents over time.
Future Trends in UV Curing and Adhesion
The industry is moving toward dual-cure and hybrid inks compatible with both LED and mercury systems. Ink chemists are also developing low-shrinkage monomers to improve adhesion on ultra-smooth substrates.
As press speeds increase and films become thinner, UV curing precision becomes the bottleneck. Real-time UV monitoring systems are gaining adoption, alerting operators instantly when lamp output falls outside specification.
Summary of Technical Mastery
Achieving reliable adhesion on non-porous substrates requires precise control of chemistry and physics. Surface energy management, ink formulation, and UV light behavior must work together. When aligned, the result is a durable label resistant to moisture, abrasion, and time.
Whether using flexographic printing or UV LED offset, the objective remains unchanged:
a perfect molecular bond at the ink–substrate interface.
