When selecting substrates for label, flexo, offset, or narrow-web printing, material compatibility with curing methods isn’t just a detail—it’s the backbone of quality. LED UV curing has reshaped the game, but not all materials play nice with every process. Let’s break down how substrates behave under different curing methods and why your choices matter.
1. Substrate Basics: What’s at Stake?
Substrates—whether paper, film, or synthetic—react uniquely to heat, light, and energy. Traditional UV curing uses mercury lamps, while LED UV systems emit targeted wavelengths. The wrong pairing can lead to warping, poor adhesion, or curing defects.
Key factors to consider:
- Thermal sensitivity: Thin films shrink under high heat.
- Surface energy: Impacts ink adhesion (dyne levels matter).
- Cure speed: LED UV works faster but requires compatible photoinitiators.
2. Label Printing: Balancing Flexibility and Durability
Labels face harsh environments—moisture, friction, UV exposure. Common substrates like PET, PP, or vinyl each have quirks:
- PET (Polyester): High dimensional stability. Works with LED UV due to low heat output. Avoid traditional UV for thin PET—warp risk.
- PP (Polypropylene): Prone to curling. LED UV’s cooler operation minimizes distortion.
- Vinyl: Durable but heat-sensitive. Hybrid curing (LED traditional) can optimize adhesion.
Pro tip: Test cure settings on small batches. Over-curing vinyl creates brittleness.
3. Flexographic Printing: Films vs. Papers
Flexo’s versatility shines in packaging, but substrate choice defines success.
- Films (BOPP, PE): Low surface energy demands corona treatment pre-print. LED UV avoids melting thin layers.
- Kraft Paper: Absorbs more ink. Traditional UV may dry too quickly, causing cracking.
- Metallized substrates: Reflective surfaces reflect UV light. High-intensity LED systems penetrate better.
Watch out: LED UV’s narrow spectrum requires inks with matching photoinitiators. Not all flexo inks are LED-ready.
4. Offset (Litho) Printing: The Heavyweight Contender
Offset handles everything from brochures to cartons. Heavier substrates like cardboard or coated paper dominate here.
- Coated Paper: Traditional UV’s heat can enhance gloss but may yellow stock over time.
- Uncoated Stock: LED UV preserves texture; less heat prevents scorching.
- Metalized Boards: Use LED to avoid overheating adhesive layers.
Fun fact: LED UV allows “cold foil” stamping—no heat, just light to bond foils.

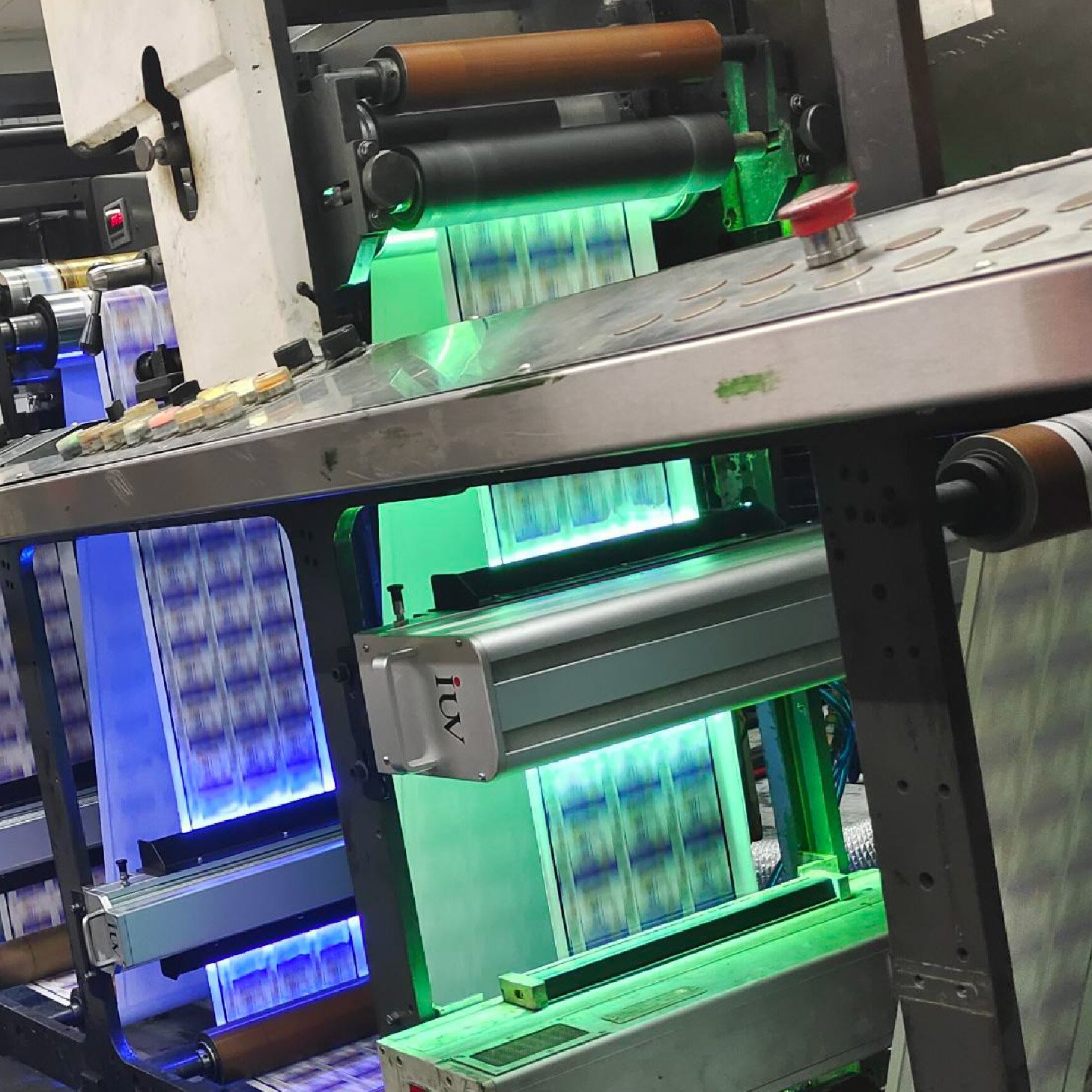

5. Narrow-Web Printing: Speed Meets Precision
Narrow-web’s niche is labels and flexible packaging. Substrates here are thin, demanding precision.
- Thermal Transfer Films: LED UV prevents heat distortion during curing.
- Clear Films (PE/PET): Traditional UV can cause haze; LED maintains clarity.
- Pressure-Sensitive Labels: Acrylic adhesives cure faster under LED, reducing production time.
Gotcha moment: Silicone release liners can block UV light. Opt for LED systems with adjustable wavelengths.
6. UV Curing Showdown: Traditional vs. LED
Not all UV is equal. Let’s compare:
| Factor | Traditional UV | LED UV |
|---|---|---|
| Heat Output | High (Risk of substrate damage) | Low (Ideal for films) |
| Energy Use | 30-40% higher | 60-70% efficiency gain |
| Lamp Life | 1,000–1,500 hours | 20,000 hours |
| Startup Time | 5–10 minutes | Instant on/off |
Substrate winners:
- LED UV: Thin films, heat-sensitive synthetics, pressure-sensitive labels.
- Traditional UV: Thick paperboard, metals, glass (where heat aids adhesion).
7. Solving Compatibility Hurdles
Stuck with a tricky substrate? Try these fixes:
- Adhesion issues: Use surface primers or plasma treatment.
- Cure inhibition: Check for contaminants (oils, silicones) pre-printing.
- Warping: Lower infrared output (switch to LED) or reduce exposure time.
Case study: A label printer switched to LED UV for PET wine labels—scrap rates dropped 18% thanks to reduced heat distortion.
8. Future-Proofing Your Material Choices
As LED UV dominates, suppliers now offer “LED-ready” substrates pre-treated for optimal bonding. Look for:
- Low-migration inks: Safe for food packaging.
- Bio-based films: Compatible with eco-friendly UV systems.
Final Word
Substrate compatibility isn’t a guessing game. Match your material’s limits to your curing method’s strengths. Test relentlessly, and don’t fear mixing technologies—hybrid systems (LED traditional) are rising for tricky jobs. Your perfect print starts with the right foundation.
Need a deeper dive? Audit your current substrates against your curing setup. Sometimes a 10% material swap can double your yield.
