Specification
| Specification ARC | |
|---|---|
| Irradiance At Window | 160 ~ 220w/cm |
| Lighting Length | 20 - 200cm |
| Optimum Curing Distance | 10 ~20mm |
| Cooling Method | Air Cooling |
| Expected Lifetime | >1000 Hours |
| Working Temperature | 40℃ |
| Specification LED | |
|---|---|
| UV Energy (w/cm²) | 18, 25, 30 w/cm² |
| Lighting Length | 10 - 200cm |
| Peak Wavelength (nm) | 365, 385, 395nm |
| Cooling Method | Water Cooling |
| Expected Lifetime | >30000 Hours |
| Working Temperature | Below 40℃ |

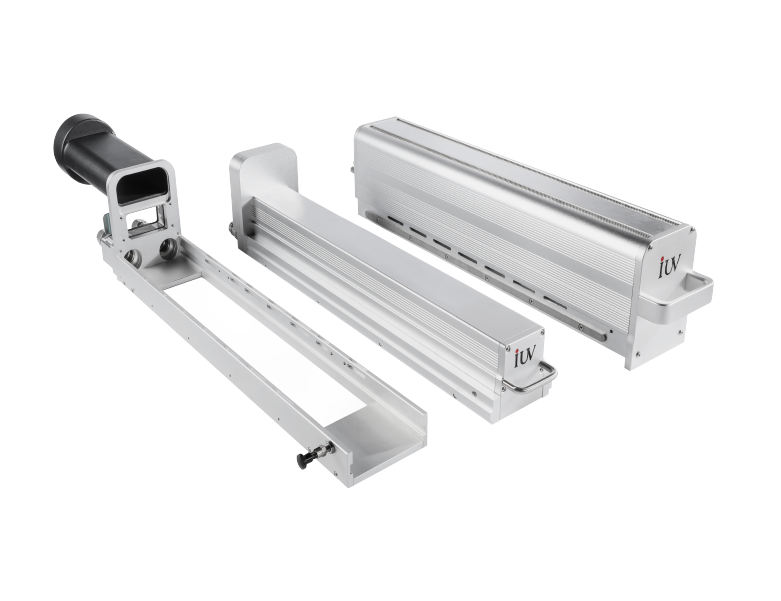

Freely Change Between LED UV & Mercury UV
The IUV Hybrid UV Curing System offers most flexibility for press operators, allowing for easy interchangeability between two types of light boxes without manual intervention. The system automatically recognizes the light box type, ensuring smooth operation. Additionally, it supports both air-cooled and water-cooled options, all while using the same power supply input within the same casing.
This versatile system not only meets diverse customer curing requirements but also boosts production efficiency by optimizing energy consumption. By minimizing energy use, it helps reduce overall production costs, making it a cost-effective solution for businesses.
Furthermore, installing the Hybrid UV Curing System on printing machines enhances their capability to work with diversified printing orders and improve workflow flexibility, enabling printers to meet varying customer demands more efficiently.
How Does the Hybrid UV Curing System Work?
With the LED & Mercury Hybrid UV Curing System, operators can easily switch between different types of light boxes based on printing requirements, completing the entire transition in just 5 seconds.
There is no need for waiting, complex manual procedures, or additional wiring and piping. The system's software automatically recognizes and matches the settings for seamless operation.
The video demonstrates the entire light box switching process, showcasing its remarkable efficiency and simplicity!
Why Do You Need LED Mercury Hybrid UV Curing System?
Easy Replace Of Hybrid UV
Intelligence Of Software Control
Strong Compatibility
Of Combination
High Return
Of lnvestment
01
Step By Step
Hybrid UV the best ideal choice for you to move from traditional mercury lamps to environmentally friendly and energy saving LEDs in the current printing industry market.
It will keep your current production process, supply chain unaffected and lead your print shop closer to the future!
02
Supply Chain Integration
LED technology is constantly evolving to make the industrial supply chain more efficient.
By installing Hybrid UV curing systems, you can reduce the reliance on a single location and improve supply chain flexibility and responsiveness.
03
Printing Process Compatibility
Hybrid UV systems can be seamlessly integrated with existing production processes and ink, material etc.
It enable energy efficiency gains and environmental impact reductions without the need for large-scale modifications to existing production processes and supply chains.
04
Adaptability to Future Trends
As the printing industry’s focus on sustainability grows, LED technology helps businesses comply with stricter environmental regulations, such as the Corporate Sustainability Reporting Directive (CSRD), which is crucial for business in 2025.
4 LED UV Curing Lamps In Total 1.6kw, IUV automatic sensing technology energy saving.
Nilpeter
The transformative journey of the Omet Xflex X6 Flexo Press with IUV LED UV curing system.
OMET
The project’s success with IUV ability to enhance print quality, increase productivity, and sustainability.
Bobst
With IUV’s LED UV curing system, enhanced production capabilities, and sustainability.
Gallus
IUV's LED UV retrofit for fast curing , energy savings, and extended equipment lifespan.
Mark Andy
The LED UV upgrade for the MPS EF-430 is a testament to efficiency and sustainability.
